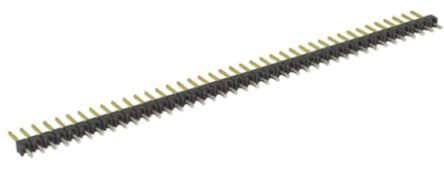

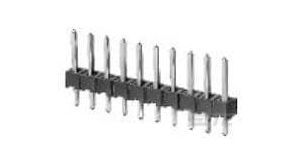

40-position, single-row straight male pin header with a 2.54mm pitch. Features a 3A current rating, gold-plated copper alloy contacts, and a high-temperature polymer housing. Designed for vertical PCB mounting via through-hole termination, operating between -65°C and 105°C. RoHS and CSA compliant, with UL94 V-0 flammability rating.
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 9-146281-0 technical specifications.
General
Approvals
CSA
Board Standoff
No (Without)
Color
Black
Contact Current Rating
3A
Contact Finish - Mating
GOLD
Contact Gender
Male
Contact Material
Copper Alloy
Contact Mating Length
0.23inch
Contact Plating
Gold, Tin, Lead, Matte
Contact Post Length
0.12inch
Contact Protection
No (Without)
Contact Shape
Square
Contact Type
Male Pin
Current Rating
3A
Depth
2.34mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gasket
No (Without)
High Speed Serial Data Connector
No
High Temperature Housing
Yes
Housing Color
Black
Insulation Color
Black
Insulation Material
Polymer
Keyed
No
Lead Free
Lead Free
Length
101.19mm
Mating Alignment
No (Without)
Mating Connector Lock
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Mount
Through Hole
Number of Contacts
40
Number of Positions
40
Number of Rows
1
Orientation
Straight
Package Quantity
100
Packaging
Carton
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
PCB Thickness
0.063inch
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
2.54mm
Selectively Loaded
No (Without)
Series
AMPMODU MOD II
Stabilizers
No (Without)
Termination
Through Hole
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 9-146281-0 Datasheet
Download the complete datasheet for TE Connectivity 9-146281-0 to view detailed technical specifications.
