9-215083-0

20 Pos 1.27mm Pitch Wire-to-Board Header, 1.5A, 230V, Red

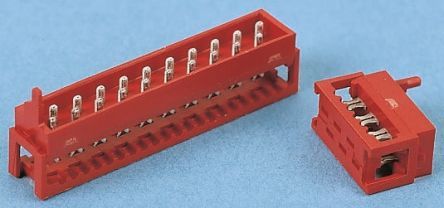

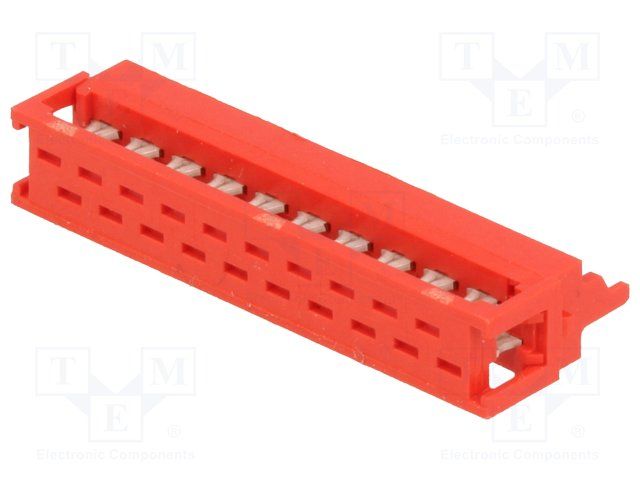

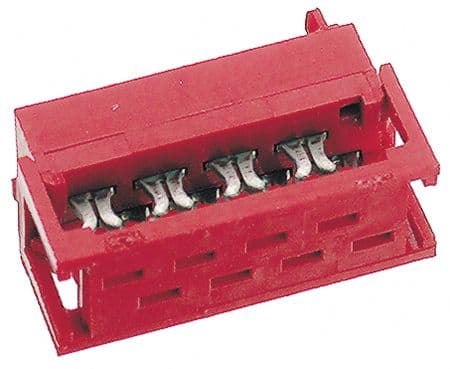

20-position, 2-row right-angle wire-to-board header with 1.27mm lead pitch and 0.05-inch pitch. Features IDC termination, male pin contacts made of tin-plated bronze, and a 1.5A current rating. Operates within a -40°C to 105°C temperature range and supports up to 230V AC. Housing is red polyester with UL94 V-0 flammability rating.

Voltage Rating230V

Current Rating1.5A

MountingFree Hanging, Cable

Quick Jump:

Technical Specifications

TE Connectivity 9-215083-0 technical specifications.

General

Board Standoff	No (Without)
Color	Red
Connector System	Wire-to-Board
Contact Current Rating	1.5A
Contact Gender	Male
Contact Material	Bronze
Contact Plating	Tin
Contact Type	Male Pin
Current Rating	1.5A
Depth	5.1mm
Flammability Rating	UL94 V-0
Height	6.8mm
Housing Color	Red
Insulation Diameter	0.035inch
Insulation Material	Polyester
Lead Pitch	1.27mm
Length	28.9mm
Material	Polyester, Thermoplastic
Mating Alignment	No (Without)
Mating Retention	No (Without)
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Max Voltage Rating (AC)	230V
Mount	Free Hanging, Cable
Number of Contacts	20
Number of Poles	20
Number of Positions	20
Number of Rows	2
Orientation	Right Angle
Package Quantity	250
Packaging	Box
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
Pitch	0.05inch
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Row Spacing	1.5mm
Series	Micro-MaTch
Shrouded	Yes (With)
Termination	IDC
Voltage Rating	230V
Width	28.9mm
Wire/Cable Gauge	28AWG
Wire/Cable Type	Ribbon
Working Voltage	100V
