Right-angle, insulated quick disconnect terminal for 18-22AWG discrete wire. Features a brass body with tin plating and a black nylon insulation. Designed for free-hanging mounting with a mating tab width of 4.75mm and tab thickness of 0.02 inches. This receptacle offers insulated wire support and is RoHS and ELV compliant. Packaged on tape and reel.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 9-520334-2 technical specifications.
General
| Color | Black |
| Contact Plating | Tin |
| ELV | Compliant |
| Flammability Rating | UL94 V-2 |
| Gender | Female |
| Insulated Wire Support | Yes |
| Insulation | Insulated |
| Insulation Diameter | 4.19mm |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 0.515inch |
| Material | Brass |
| Mating Tab Width | 4.75mm |
| Mount | Free Hanging |
| Orientation | Right Angle |
| Package Quantity | 2200 |
| Packaging | Tape and Reel |
| Plating | Tin |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Ultra-Fast |
| Tab Thickness | 0.02inch |
| Tab Width | 0.187inch |
| Termination | Receptacle |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 18AWG |
| Wire/Cable Diameter | 4.19mm |
| Wire/Cable Type | Discrete |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 9-520334-2 Datasheet
Download the complete datasheet for TE Connectivity 9-520334-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

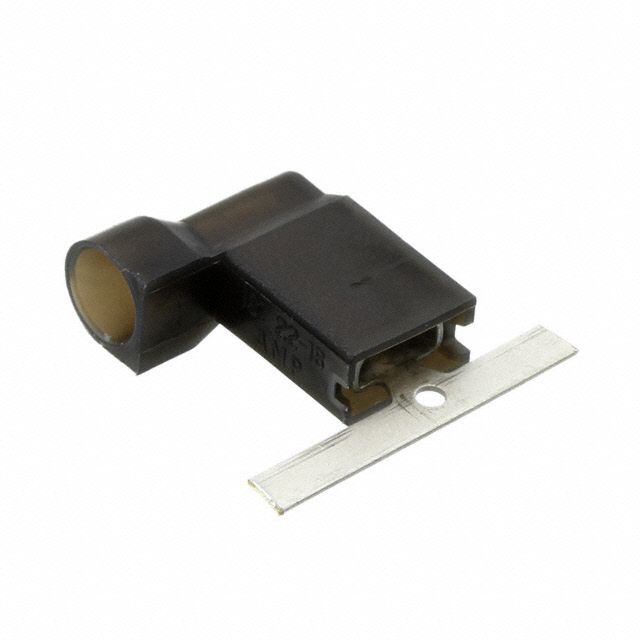

Product Images
