Rectangular connector for signal applications, featuring 6 positions across 3 rows. Constructed with tin-plated bronze contacts, this right-angle, through-hole mount connector has a 3.5mm pitch and a 0.8mm x 2.8mm tab size. Operating within a -40°C to 212°C temperature range, the black housing is UL94 HB flammability rated and RoHS compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 9-966140-5 technical specifications.
General
| Circuit Application | Signal |
| Color | Black |
| Contact Material | Tin, Bronze |
| Contact Plating | Tin |
| ELV | Compliant |
| Flammability Rating | UL94 HB |
| Housing Color | Black |
| Length | 1.0236inch |
| Max Operating Temperature | 212°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 3 |
| Number of Signal Positions | 6 |
| Orientation | Right Angle |
| Package Quantity | 168 |
| Packaging | Tray |
| PCB Mount Alignment | No (Without) |
| PCB Mount Retention | Without |
| Pitch | 3.5mm |
| Primary Type | CONNECTOR |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Timer |
| Shielding | Unshielded |
| Tab Thickness | 0.8mm |
| Tab Width | 2.8mm |
| Termination | Solder |
| Width | 0.791inch |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 9-966140-5 Datasheet
Download the complete datasheet for TE Connectivity 9-966140-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

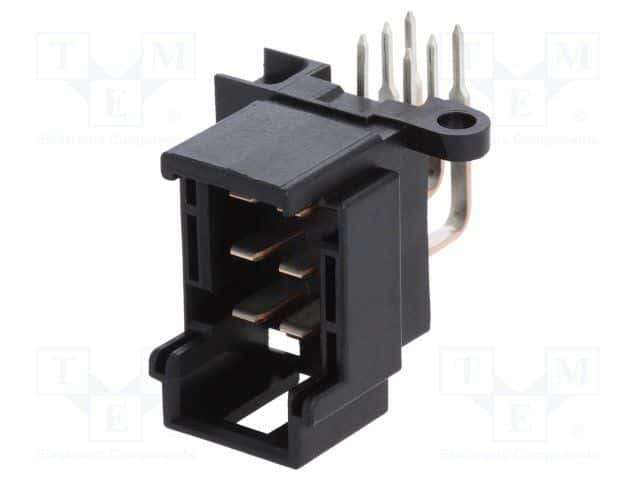

Product Images
