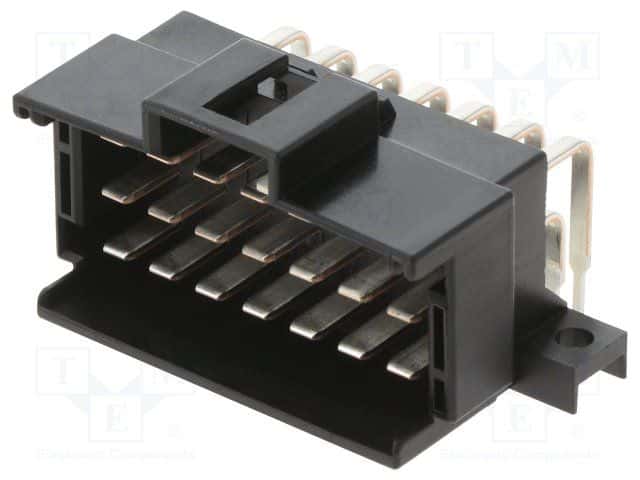

21-position, 3-row right-angle male connector for signal applications. Features tin-plated bronze contacts with a 3.5mm pitch and 0.8mm x 2.8mm tabs. Through-hole termination with a 24V voltage rating and a maximum operating temperature of 212°C. Constructed with UL94 HB flammability rating and RoHS compliance.
Voltage Rating24V
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 9-966140-6 technical specifications.
General
| Circuit Application | Signal |
| Color | Black |
| Contact Material | Tin, Bronze |
| Contact Plating | Tin |
| ELV | Compliant |
| Flammability Rating | UL94 HB |
| Gender | Male |
| Lead Free | Lead Free |
| Length | 51mm |
| Max Operating Temperature | 212°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 21 |
| Number of Positions | 21 |
| Number of Rows | 3 |
| Number of Signal Positions | 21 |
| Orientation | Right Angle |
| Package Quantity | 112 |
| PCB Mount Alignment | No (Without) |
| PCB Mount Retention | Without |
| Pitch | 3.5mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Messerleiste |
| Shielding | Unshielded |
| Tab Thickness | 0.8mm |
| Tab Width | 2.8mm |
| Termination | Solder |
| Voltage Rating | 24V |
| Width | 0.791inch |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 9-966140-6 Datasheet
Download the complete datasheet for TE Connectivity 9-966140-6 to view detailed technical specifications.
