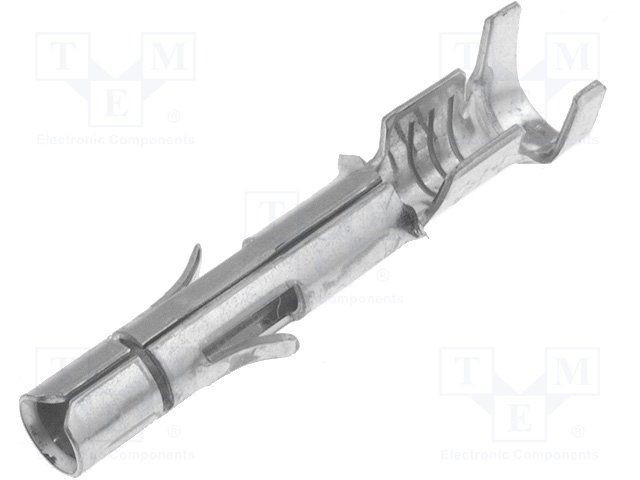

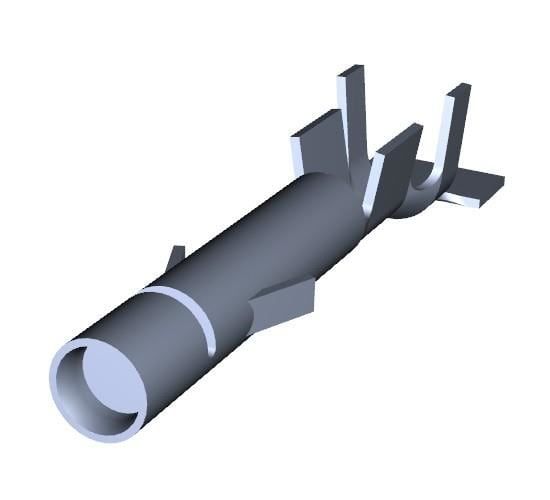

Universal MATE-N-LOK receptacle for wire-to-wire power applications. Features a 19A current rating and 600V voltage rating. Designed for discrete wire with a 20-14 AWG range and 3.3mm maximum wire diameter. Constructed from brass with tin plating, this straight, female contact offers a 4.5mm height and 4mm depth. Compliant with UL, VDE, RoHS, and ELV standards.
Voltage Rating600V
Current Rating19A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 926882-1 technical specifications.
General
Approvals
UL
Circuit Application
Power
Connector System
Wire-to-Wire
Contact Current Rating
19A
Contact Gender
Female
Contact Material
Brass
Contact Plating
Tin
Contact Type
Power
Current Rating
19A
Depth
4mm
ELV
Compliant
Gender
Receptacle
Height
4.5mm
Insulation Diameter
0.13inch
Lead Free
Lead Free
Length
20.1mm
Material
Brass
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Mount
Cable
Orientation
Straight
Package Quantity
5000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Universal MATE-N-LOK
Termination
Crimp
VDE Tested
Yes
Voltage Rating
600V
Voltage Rating (AC)
600V
Wire Gauge (Max)
14AWG
Wire Gauge (Min)
20AWG
Wire/Cable Diameter
3.3mm
Wire/Cable Gauge
14AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
