Universal MATE-N-LOK socket for wire-to-wire power applications. Features a 19A current rating and 600V voltage rating. Constructed from brass with tin plating, this female receptacle accepts 24-18AWG discrete wire with a 2.5mm diameter. Operating temperature range is -67°C to 221°C. UL and VDE tested, RoHS compliant.
Voltage Rating600V
Current Rating19A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 926884-1 technical specifications.
General
| Approvals | UL |
| Circuit Application | Power |
| Connector System | Wire-to-Wire |
| Contact Current Rating | 19A |
| Contact Gender | Female |
| Contact Material | Brass, CuZn, Bronze |
| Contact Plating | Tin |
| Contact Retention | Yes (With) |
| Contact Style | Socket |
| Contact Type | Power |
| Current Rating | 19A |
| Depth | 3.4mm |
| ELV | Compliant |
| Gender | Receptacle |
| Height | 3.5mm |
| Insulation Diameter | 2.4892mm |
| Lead Free | Not Applicable |
| Length | 20.1mm |
| Material | Brass |
| Max Current Rating | 19A |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -67°C |
| Mount | Cable |
| Operating Supply Voltage | 600V |
| Orientation | Straight |
| Package Quantity | 6000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Universal MATE-N-LOK |
| Termination | Crimp |
| VDE Tested | Yes |
| Voltage Rating | 600V |
| Voltage Rating (AC) | 600V |
| Wire Gauge (Max) | 18AWG |
| Wire Gauge (Min) | 24AWG |
| Wire/Cable Diameter | 2.5mm |
| Wire/Cable Gauge | 18AWG |
| Wire/Cable Type | Discrete |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 926884-1 Datasheet
Download the complete datasheet for TE Connectivity 926884-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

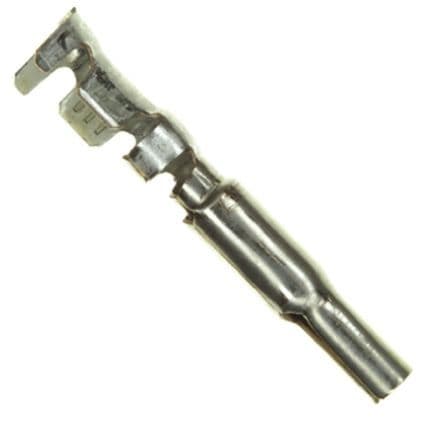

Product Images
