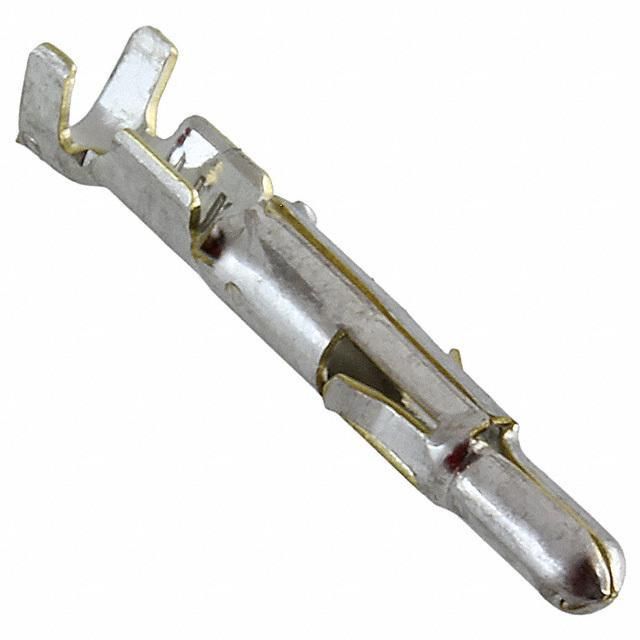

Universal MATE-N-LOK assembly tool for wire-to-wire power applications. Features a straight, male pin contact with brass material and tin plating, rated for 19A and 600V operating voltage. Designed for crimp termination of discrete wire from 24AWG to 18AWG, with an insulation diameter of 0.098 inches. Operates within a temperature range of -67°C to 221°C. RoHS and UL compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 926896-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity 926896-1 technical specifications.
| Approvals | UL |
| Package/Case | 100 |
| Circuit Application | Power |
| Connector System | Wire-to-Wire |
| Contact Current Rating | 19A |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Retention | Yes (With) |
| Contact Style | Pin |
| Contact Type | Power |
| Current Rating | 19A |
| ELV | Compliant |
| Insulation Diameter | 0.098inch |
| Lead Free | Not Applicable |
| Length | 20.1mm |
| Material | Brass |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -67°C |
| Mount | Cable |
| Operating Supply Voltage | 600V |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Box |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Universal MATE-N-LOK |
| Shielding | Unshielded |
| Termination | Crimp |
| VDE Tested | Yes |
| Voltage Rating | 600V |
| Wire Gauge (Max) | 18AWG |
| Wire Gauge (Min) | 24AWG |
| Wire/Cable Gauge | 18AWG |
| Wire/Cable Type | Discrete |
| RoHS | Compliant |
