1.5mm System female signal contact for cable mounting, featuring a straight orientation and crimp termination. Constructed from copper alloy, copper, or copper nickel silicon alloy with tin plating, this contact supports a 20A current rating. It accommodates wire gauges from 17AWG to 20AWG, with an insulation diameter of 2.1mm. Operating temperature range is -40°C to 130°C. Packaged on tape and reel, this RoHS compliant component is designed for assembly applications.
Storage1.5mm
Current Rating20A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 929989-1 technical specifications.
General
Contact Material
Copper Alloy, Copper, COPPER NICKEL SILICON ALLOY
Contact Plating
Tin
Contact Type
Signal
Current Rating
20A
ELV
Compliant
Gender
Female
Insulation Diameter
2.1mm
Lead Free
Not Applicable
Length
21.2mm
Max Operating Temperature
130°C
Min Operating Temperature
-40°C
Mount
Cable
Orientation
Straight
Package Quantity
4000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
1.5mm System
Shielding
Unshielded
Size
1.5mm
Termination
Crimp
Wire Gauge (Max)
20AWG
Wire Gauge (Min)
17AWG
Wire/Cable Gauge
17AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 929989-1 Datasheet
Download the complete datasheet for TE Connectivity 929989-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

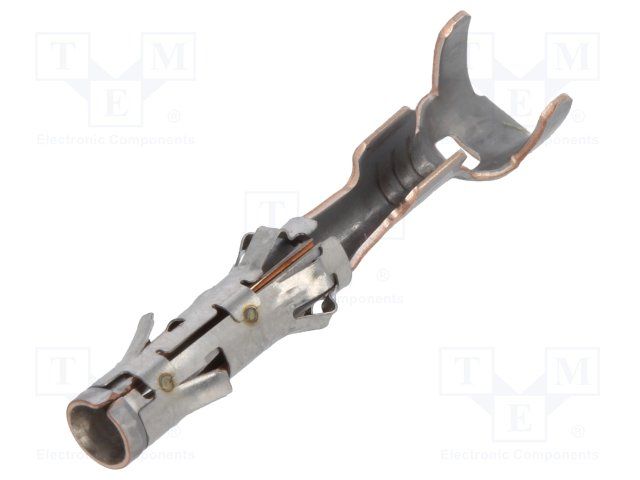

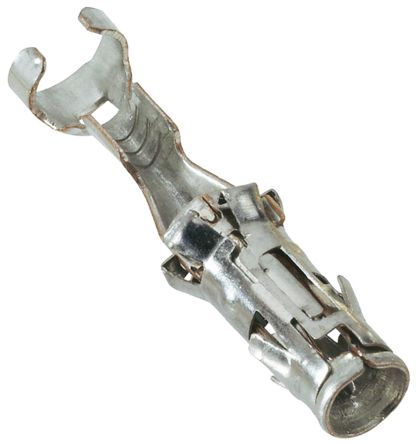

Product Images
