Silicone male cavity plug, white, designed for automotive applications. Features a straight termination with a press-fit style, accommodating wire/cable diameters up to 0.154 inches. Operates within a temperature range of -40°C to 130°C and offers IP69 ingress protection. Supplied in bulk packaging with 100,000 units per package. RoHS compliant.
Quick Jump:
Technical Specifications
TE Connectivity 963531-1 technical specifications.
General
| Color | White |
| Gender | Male |
| Length | 7.8mm |
| Material | Silicone |
| Max Operating Temperature | 130°C |
| Min Operating Temperature | -40°C |
| Number of Positions | 1 |
| Number of Rows | 1 |
| Package Quantity | 100000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP69 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MCP 1.5K |
| Termination | Press-Fit |
| Wire/Cable Diameter | 0.154inch |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 963531-1 Datasheet
Download the complete datasheet for TE Connectivity 963531-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

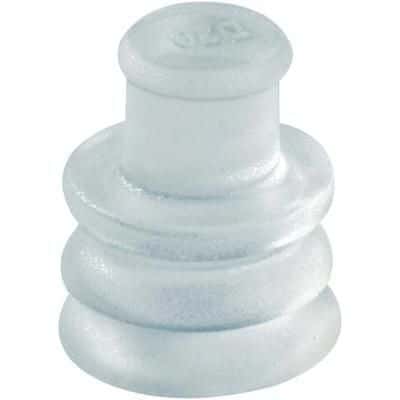

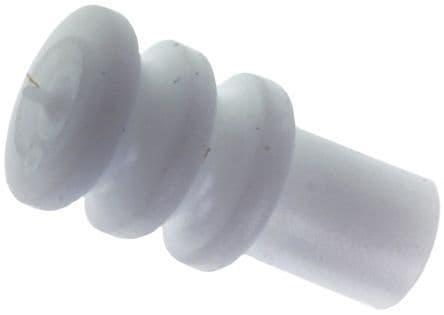

Product Images
