Voltage Rating300V
Current Rating20A
MountingPanel, Chassis
Quick Jump:
Technical Specifications
TE Connectivity BC6-Q308-02 technical specifications.
General
Color
Black
Current Rating
20A
Flammability Rating
UL94 V-0
Housing Color
Black
Insulation Material
Thermoplastic
Mount
Panel, Chassis
Number of Circuits
2
Number of Contacts
2
Number of Rows
1
Number of Wire Entries
2
Orientation
Straight
Package Quantity
720
Packaging
Bulk
Pitch
9.53mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
BC6, Buchanan
Terminal Finish
Zinc
Terminal Material
Steel
Termination
Faston
Voltage Rating
300V
Wire Gauge (Max)
22AWG
Wire Gauge (Min)
12AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity BC6-Q308-02 Datasheet
Download the complete datasheet for TE Connectivity BC6-Q308-02 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

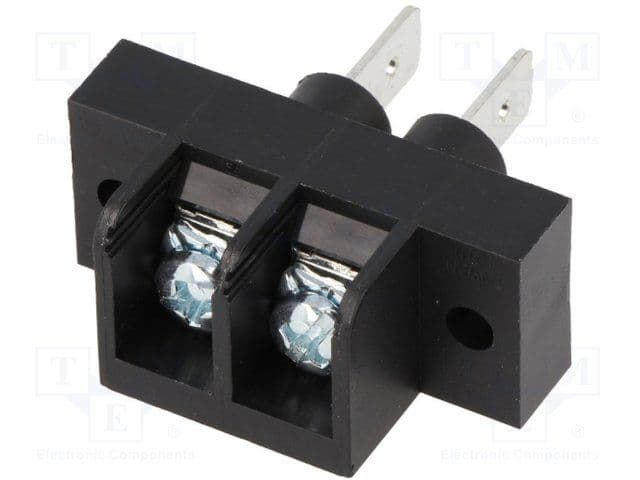

Product Images
