2-position, male, free-hanging rectangular connector assembly featuring a black housing and black color. This crimp termination connector utilizes copper alloy contacts with nickel plating, designed as female sockets. It supports a 13A current rating and operates within a temperature range of -55°C to 125°C. The housing exhibits UL94 V-0 flammability rating and is lead-free and RoHS compliant.
Current Rating13A
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity DT06-2S-CE06 technical specifications.
General
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Nickel |
| Contact Type | Female Socket |
| Current Rating | 13A |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | DT |
| Termination | Crimp |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity DT06-2S-CE06 Datasheet
Download the complete datasheet for TE Connectivity DT06-2S-CE06 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

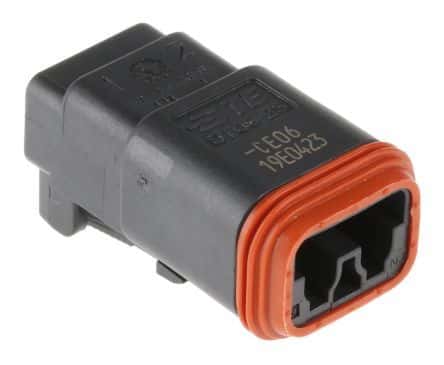

Product Images
