Rectangular connector featuring a wire-to-device system with 48 male pin contacts. This right-angle, through-hole mount component offers a 0.175-inch pitch and a 2-row configuration. Constructed with copper contacts plated in tin, it operates within a -55°C to 125°C temperature range and is rated for 250V DC. The black plastic insulation and grey housing are UL94 V-0 flammability rated.
Voltage Rating250mV
MountingThrough Hole, Panel
PolarityNo
Quick Jump:
Technical Specifications
TE Connectivity DT13-48PABCD-R015 technical specifications.
General
Color
Black
Connector System
Wire-to-Device
Contact Finish - Mating
TIN
Contact Material
Copper
Contact Plating
Tin
Contact Shape
Circular
Contact Type
Male Pin
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Height
2.097inch
Housing Color
Grey
Hybrid Connector
No
Insulation Color
Black
Insulation Material
Plastic
Lead Free
Lead Free
Length
141.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole, Panel
Number of Contacts
48
Number of Positions
48
Number of Rows
2
Operating Supply Voltage
250V
Orientation
Right Angle
Packaging
Bulk
Pitch
0.175inch
Polarized
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
Yes (With)
Series
DT
Serviceable
No
Strain Relief
No (Without)
Termination
Solder
Voltage Rating
250mV
DC Rated Voltage
250V
Width
53.25mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity DT13-48PABCD-R015 Datasheet
Download the complete datasheet for TE Connectivity DT13-48PABCD-R015 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

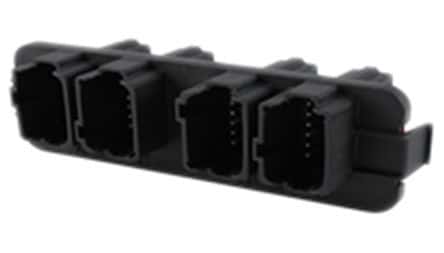

Product Images
