Polyolefin heat shrink end cap, 5.7mm inside diameter, designed for wire and cable management. Features moisture resistance and a black color. Operates within a temperature range of -40°C to 105°C. UL approved and ELV compliant.
Quick Jump:
Technical Specifications
TE Connectivity ES-CAP-NO.1-C1-0-30MM technical specifications.
General
| Approvals | UL |
| Body Material | PO, Polyolefin |
| Color | Black |
| ELV | Compliant |
| Features | Moisture Resistant |
| Government Qualified | No |
| Height | 30mm |
| High Temperature Compatible | No |
| Inside Diameter | 5.7mm |
| Lead Free | Not Applicable |
| Length | 1.181inch |
| Material | Polyolefin |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Package Quantity | 15000 |
| Reach SVHC Compliant | No |
| Series | ES |
| Wire/Cable Diameter | 5.7mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity ES-CAP-NO.1-C1-0-30MM Datasheet
Download the complete datasheet for TE Connectivity ES-CAP-NO.1-C1-0-30MM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

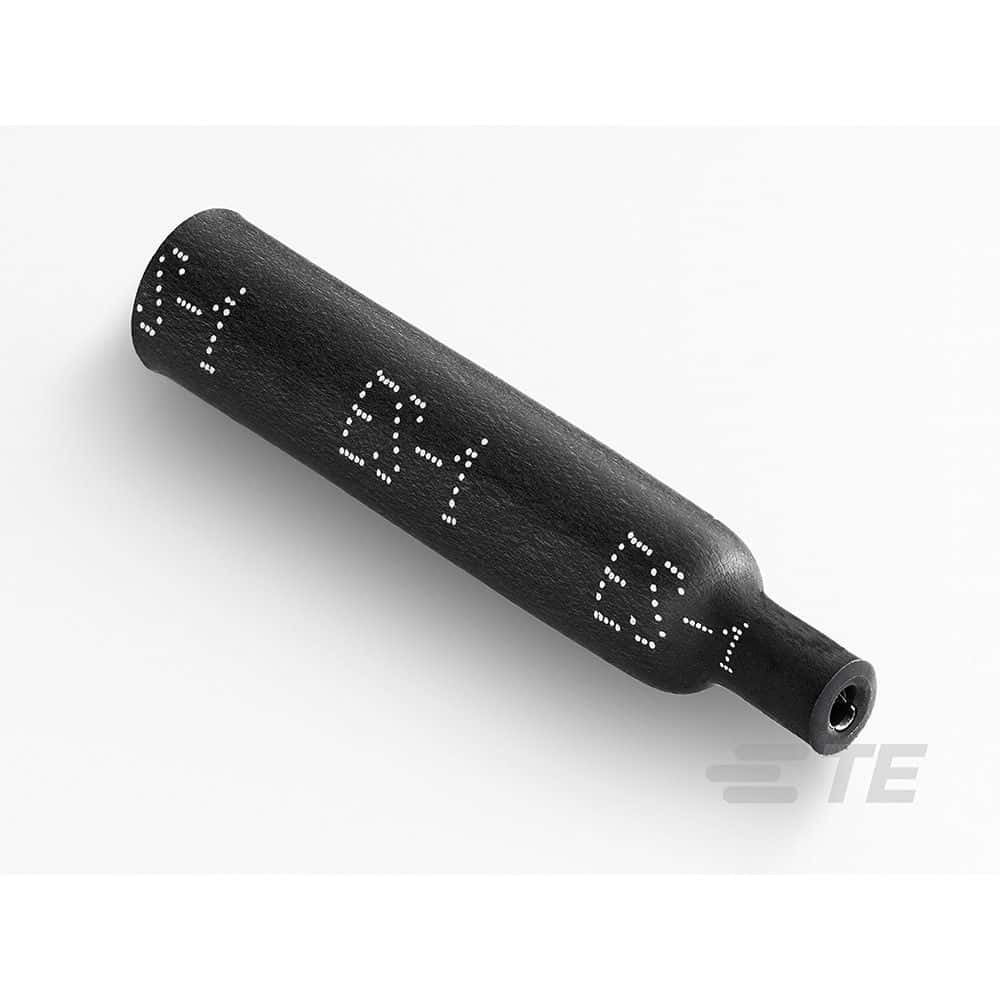

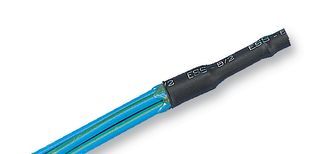

Product Images
