20-circuit, 2.54mm pitch flat ribbon cable assembly featuring copper conductors and PTFE insulation. This assembly offers a 3A current rating, 300V voltage rating, and operates within a temperature range of -40°C to 150°C. With a characteristic impedance of 114 Ohms and a capacitance of 11.4pF, it is suitable for demanding applications. The grey, RoHS compliant cable is designed for IDC and FFC/FPC connections.
Capacitance11.4pF
Voltage Rating300V
Current Rating3A
Quick Jump:
Technical Specifications
TE Connectivity FST-21A-20 technical specifications.
General
| Body Material | PTFE |
| Cable Pitch | 2.54mm |
| Capacitance | 11.4pF |
| Characteristic Impedance | 114R |
| Color | Grey |
| Conductor Material | Copper |
| Current Rating | 3A |
| ELV | Compliant |
| Impedance | 114R |
| Jacket Material | PTFE |
| Max Current Rating | 3A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 300V |
| Number of Circuits | 20 |
| Number of Conductors | 20 |
| Number of Contacts | 20 |
| Number of Cores | 20 |
| Pitch | 2.54mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | FLEXSTRIP |
| Voltage Rating | 300V |
| Voltage Rating (AC) | 300V |
| DC Rated Voltage | 300V |
| Wire/Cable Gauge | 24AWG |
| Wire/Cable Type | Ribbon, Flat |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity FST-21A-20 Datasheet
Download the complete datasheet for TE Connectivity FST-21A-20 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

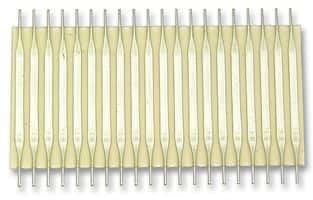

Product Images
