General purpose, wire-to-wire circular connector featuring a straight, male receptacle with 6 positions and 6 contacts. Constructed with a grey thermoplastic body and shell, it utilizes copper alloy contacts with nickel plating and a circular CRIMP termination type. Rated for 13A current and operating temperatures from -55°C to 125°C, this connector offers IP68, waterproof, dust-tight, and IP67 ratings. Mountable via panel, flanges, or cable, it is RoHS compliant and sealable.
Current Rating13A
MountingPanel, Flanges, Cable
PolarityYes
Quick Jump:
Technical Specifications
TE Connectivity HD10-6-96P technical specifications.
General
Body Material
Thermoplastic
Color
Grey
Connector System
Wire-to-Wire
Contact Gender
Male
Contact Material
Copper Alloy
Contact Plating
Nickel
Contact Shape
Circular
Contact Type
CRIMP
Current Rating
13A
ELV
Compliant
Flammability Rating
UL94 V-1
Gender
Receptacle
Height
1.637inch
Housing Color
Grey
Hybrid Connector
No
Length
38.94mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Panel, Flanges, Cable
Number of Contacts
6
Number of Positions
6
Orientation
Straight
Packaging
Bulk
Polarized
Yes
Ratings
IP68, Waterproof, Dust Tight, IP67
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
Yes (With)
Series
HD10
Serviceable
Yes
Shell Material
Nylon
Shell Size
6
Shielding
Unshielded
Strain Relief
Add By Accessory
Termination
Crimp
Width
1.533inch
Compliance
RoHS
Compliant
Datasheet
TE Connectivity HD10-6-96P Datasheet
Download the complete datasheet for TE Connectivity HD10-6-96P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

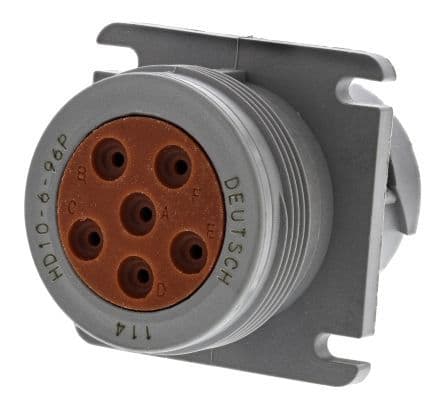

Product Images
