Shielded, right-angle, female RJ45 connector with 8 positions and 8 contacts. Features gold-plated bronze contacts, a 2.54mm pitch, and a 2.3A current rating. Designed for through-hole mounting with solder termination and a black housing. Compliant with RoHS and UL94 V-0 flammability standards.
Current Rating2.3A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity RJ45-8N3-B technical specifications.
General
Color
Black
Contact Material
Bronze
Contact Plating
Gold
Current Rating
2.3A
Direction
Down
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Lead Free
Lead Free
Mount
Through Hole
Number of Contacts
8
Number of Ports
1
Number of Positions
8
Number of Rows
1
Orientation
Right Angle
Package Quantity
100
Packaging
Bulk
Pitch
2.54mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
N
Shielding
Shielded
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
TE Connectivity RJ45-8N3-B Datasheet
Download the complete datasheet for TE Connectivity RJ45-8N3-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

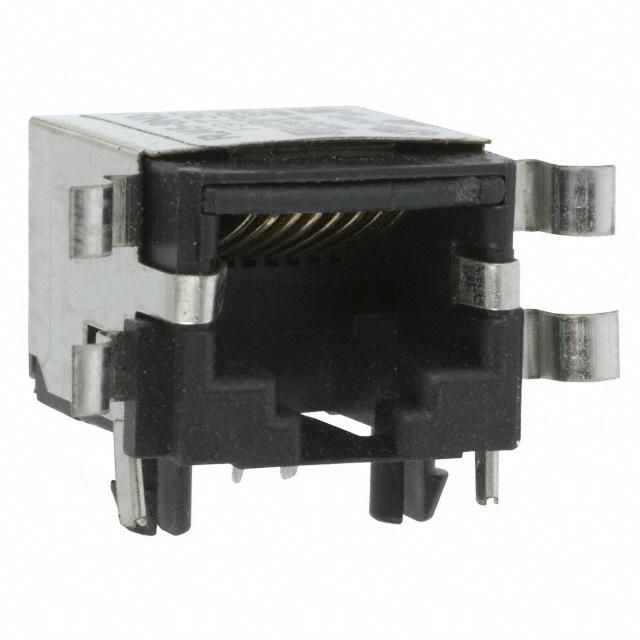

Product Images
