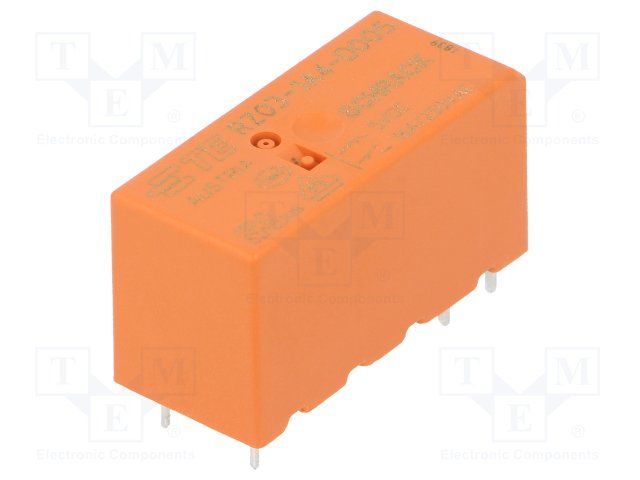

This is a general-purpose relay with a 5V non-latching coil, capable of handling 16A of contact current. It has a maximum operating temperature range of -40°C to 85°C and is compliant with RoHS regulations. The relay has a silver contact material and a PCB mount with a through-hole termination. It has a coil power rating of 420mW and a coil resistance of 60R.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity RZ03-1A4-D005 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity RZ03-1A4-D005 technical specifications.
| Application(s) | GENERAL PURPOSE |
| Coil Current | 83.33mA |
| Coil Power | 420mW |
| Coil Resistance | 60R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 16A |
| Contact Material | Silver |
| Depth | 12.7mm |
| Height | 15.7mm |
| Length | 29mm |
| Life (Hours) | 50Hour |
| Max Current Rating | 16A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 400V |
| Mount | PCB, Through Hole |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Termination | PCB |
| Throw Configuration | SPST |
| RoHS | Compliant |
