General purpose relay featuring a Single Pole Single Throw (SPST) contact configuration. Rated for 16A contact current with silver contact material. Operates on a 12V DC coil voltage with a coil current of 33.3mA and 360 Ohm coil resistance. Non-latching coil type with 8ms operate time and 6ms release time. Through-hole mounting with PC pin termination.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity RZ03-1A4-D012 technical specifications.
General
| Coil Current | 33.3mA |
| Coil Resistance | 360R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 16A |
| Contact Material | Silver |
| Height | 15.7mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Operate Time | 8ms |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 6ms |
| RoHS Compliant | Yes |
| Series | RZ, SCHRACK |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Width | 12.7mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity RZ03-1A4-D012 Datasheet
Download the complete datasheet for TE Connectivity RZ03-1A4-D012 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

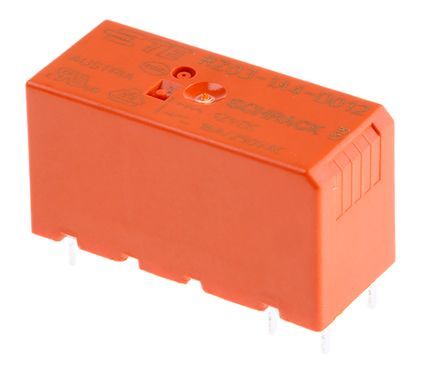

Product Images
