The WM-8S is an 8-position socket connector tool from TE Connectivity, designed for use with wire-to-wire connectors. It features a PBT material construction and a maximum operating temperature of 125°C. The tool is compliant with RoHS regulations and has a flammability rating of UL94 HB. It is serviceable and suitable for use in a variety of applications.
MountingSocket
Quick Jump:
Technical Specifications
TE Connectivity WM-8S technical specifications.
General
| Color | Orange |
| Connector System | Wire-to-Wire |
| Flammability Rating | UL94 HB |
| Material | PBT |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Socket |
| Number of Positions | 8 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | DTM |
| Serviceable | Yes |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity WM-8S Datasheet
Download the complete datasheet for TE Connectivity WM-8S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

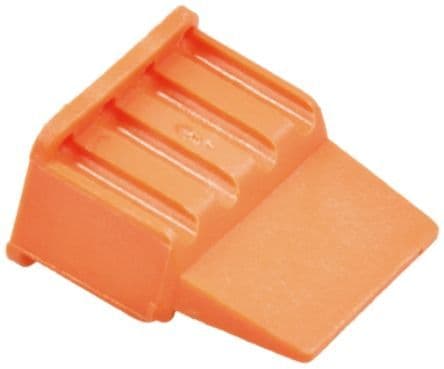

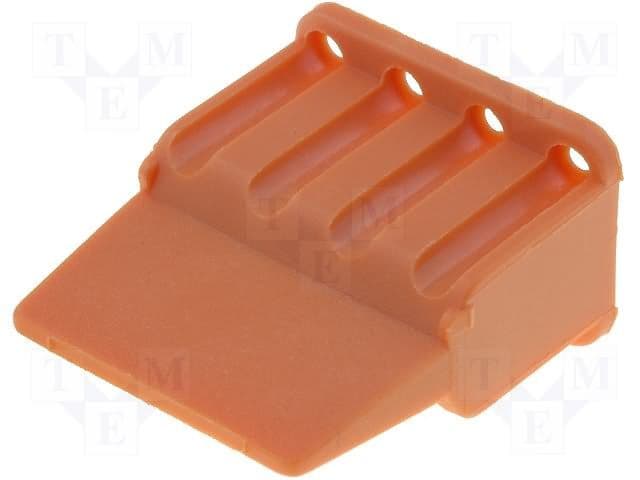

Product Images
