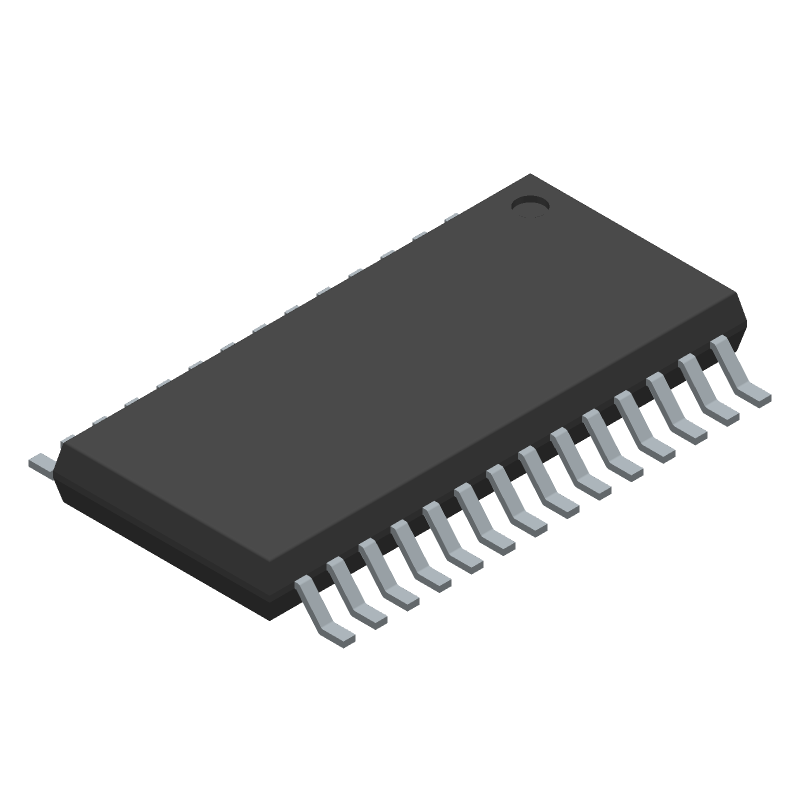

12-bit, 1-channel digital-to-analog converter (DAC) with a 200MS/s conversion rate. Features a unipolar output, parallel interface, and a 2.5LSB integral nonlinearity. Housed in a 28-pin TSSOP package with gold contact plating, this general-purpose DAC operates from a 2.7V to 5.5V supply. Maximum power dissipation is 230mW, with a typical power consumption of 170mW.
PackageTSSOP
Current24mA
Power170mW
Quick Jump:
Technical Specifications
Texas Instruments DAC902E technical specifications.
General
Package/Case
TSSOP
Contact Plating
Gold
Conversion Rate
200MS/s
Converter Type
GENERAL PURPOSE
Differential Nonlinearity
1.75LSB
Height
1.15mm
Integral Nonlinearity (INL)
2.5LSB
Interface
Parallel
Lead Free
Lead Free
Length
9.7mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
230mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of Bits
12
Number of Channels
1
Number of Converters
1
Number of D/A Converters
1
Number of DAC Channels
1
Operating Supply Voltage
5V
Output Polarity
Unipolar
Package Quantity
50
Packaging
Rail/Tube
Power Consumption
170mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
200000000S/s
Series
SpeedPlus™
Settling Time
0.03us
Spurious-free dynamic range (SFDR)
75dB
Supply Current
24mA
Supply Type
Analog, Digital
Termination
SMD/SMT
Weight
0.004145oz
Width
4.4mm
Compliance
RoHS
Compliant
