Single-output step-down DC/DC controller with a 1MHz switching frequency. Features a 4.5V to 42V input voltage range and a maximum output current of 1.75A. Operates with a 100% duty cycle and offers adjustable output voltage down to 1.25V. Packaged in an 8-pin VSSOP (MSOP) for surface mounting, this RoHS compliant component is suitable for operation between -40°C and 125°C.
Frequency1MHz
PackageMSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM25085MME/NOPB technical specifications.
General
Package/Case
MSOP
Duty Cycle
100%
Frequency
1MHz
Height
0.86mm
Lead Free
Lead Free
Length
3mm
Max Duty Cycle
100%
Max Frequency
1MHz
Max Input Voltage
42V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.75A
Min Output Voltage
1.25V
Max Supply Voltage
42V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Outputs
1
Output Current
1.75A
Output Voltage
42V
Packaging
Tape and Reel
Quiescent Current
1.25mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PowerWise®
Termination
SMD/SMT
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM25085MME/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM25085MME/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

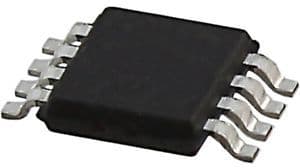

Product Images
