Technical Specifications
Texas Instruments LM3502SQ-35 technical specifications.
General
| Efficiency | 80% |
| Frequency | 1.2MHz |
| Lead Free | Contains Lead |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 35V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Outputs | 2 |
| Number of Segments | 10 |
| Output Voltage | 34V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Quiescent Current | 1.9mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Termination | SMD/SMT |
| Topology | Boost |
| Width | 4mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments LM3502SQ-35 Datasheet
Download the complete datasheet for Texas Instruments LM3502SQ-35 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

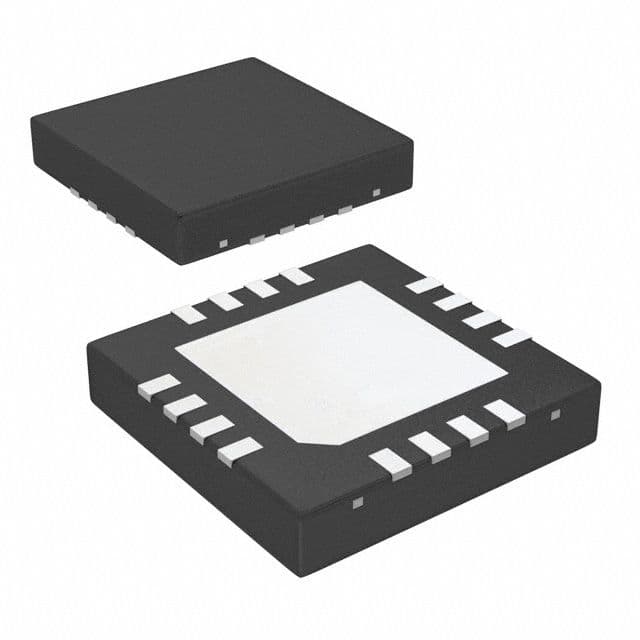

Product Images
