The LM93CIMT/NOPB is an 8-bit dual fan controller from Texas Instruments. It operates over a temperature range of 0°C to 85°C and is compliant with RoHS regulations. The device features a SMBus interface and can supply 8mA at 3.6V. It is packaged in a lead-free TSSOP-56 package and is available in quantities of 34 in rail/Tube packaging.
PackageTSSOP
Current900uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM93CIMT/NOPB technical specifications.
General
| Package/Case | TSSOP |
| Interface | SMBus |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Outputs | 2 |
| Operating Supply Voltage | 3.6V |
| Output Current | 8mA |
| Output Voltage | 3.6V |
| Package Quantity | 34 |
| Packaging | Rail/Tube |
| Quiescent Current | 900uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 900uA |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM93CIMT/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM93CIMT/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

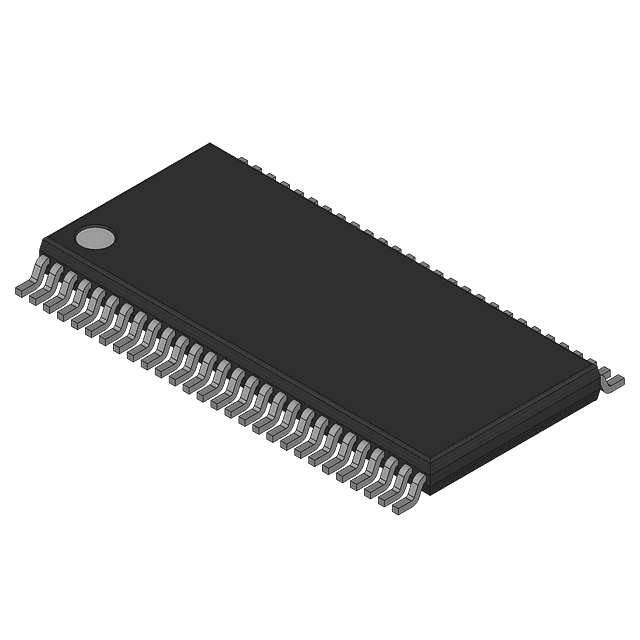

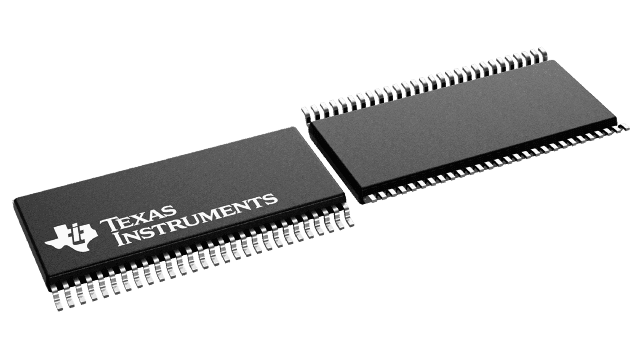

Product Images
