LMH7220MK/NOPB
High-Speed Comparator, 1-Ch, 7ns Prop Delay, LVDS Out, TSOT, 1.35-12V
High-speed comparator featuring LVDS output, designed for general-purpose applications. Operates with a dual supply voltage range of 1.35V to 6V or a single supply from 2.7V to 12V. Offers a fast response time of 2.9ns and a propagation delay of 7ns. Key specifications include a 70dB Common Mode Rejection Ratio and 74dB Power Supply Rejection Ratio. Packaged in a compact TSOT (6-SOT-23-THIN) surface-mount form factor, measuring 2.92mm x 1.65mm x 0.87mm. Suitable for operation across a wide temperature range of -40°C to 125°C.
PackageTSOT
Current9mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMH7220MK/NOPB technical specifications.
General
Package/Case
TSOT
Common Mode Rejection Ratio
70dB
Height
0.87mm
Input Bias Current
500nA
Input Offset Voltage (Vos)
9.5mV
Lead Free
Lead Free
Length
2.92mm
Max Dual Supply Voltage
6V
Min Dual Supply Voltage
1.35V
Max Input Current
500nA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
12V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Output Compatibility
LVDS
Output Current
5mA
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
74dB
Propagation Delay
7ns
Quiescent Current
6.8mA
Reach SVHC Compliant
No
Response Time
2.9ns
RoHS Compliant
Yes
Supply Current
9mA
Technology
BIPOLAR
Termination
SMD/SMT
Thickness
870um
Type
General Purpose
Voltage Gain
59dB
Width
1.65mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LMH7220MK/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMH7220MK/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

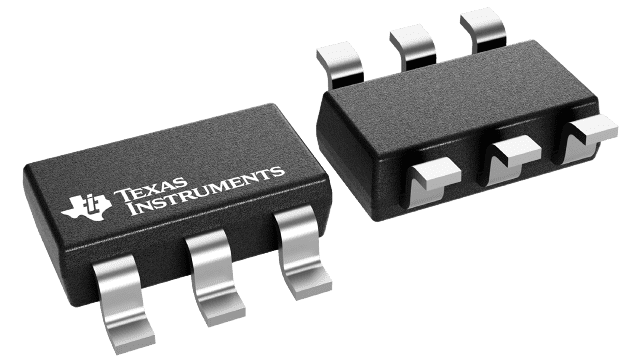

Product Images
