Quad low-voltage operational amplifier featuring rail-to-rail outputs. This general-purpose amplifier offers a 5.5MHz gain bandwidth product and a 1.9V/µs slew rate. Operating from 2.5V to 5V, it provides 4 channels with a 105dB voltage gain and 45mA output current per channel. The device is housed in a 14-TVSOP package, suitable for surface mounting, and operates across a -40°C to 85°C temperature range.
PackageTFSOP
Current1.3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMV824DGVR technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 5.5MHz |
| Package/Case | TFSOP |
| Common Mode Rejection Ratio | 72dB |
| Gain Bandwidth Product | 5.5MHz |
| Input Bias Current | 100nA |
| Input Offset Voltage (Vos) | 3.5mV |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 1mA |
| Output Current | 45mA |
| Output Current per Channel | 45mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Slew Rate | 1.9V/µs |
| Supply Current | 1.3mA |
| Technology | BICMOS |
| Unity Gain Bandwidth Product | 5.5MHz |
| Voltage Gain | 105dB |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LMV824DGVR Datasheet
Download the complete datasheet for Texas Instruments LMV824DGVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

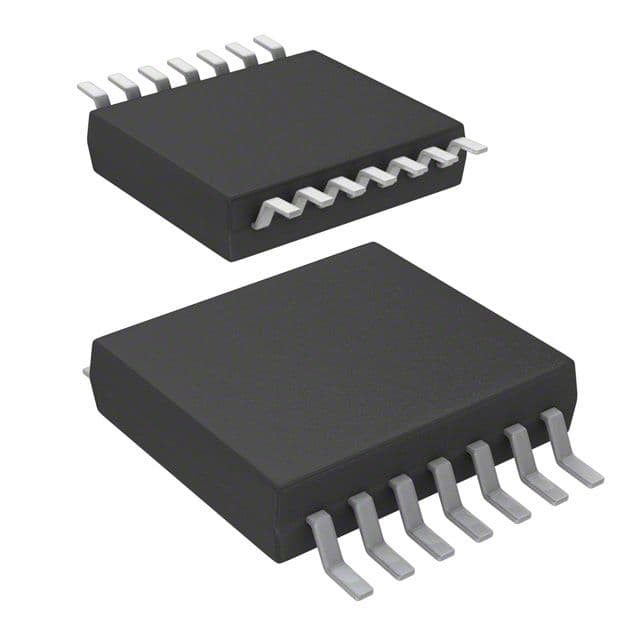

Product Images
