Texas Instruments
LMX2541SQE3030E/NOPB
Ultra-low noise PLLatinum frequency synthesizer with integrated VCO 36-WQFN -40 to 85
Frequency4GHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMX2541SQE3030E/NOPB technical specifications.
General
Input
Clock
Lead Free
Lead Free
Max Frequency
4GHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.45V
Min Supply Voltage
3.15V
Mount
Surface Mount
Number of Circuits
1
Number of Elements
1
Number of Outputs
1
Operating Supply Current
120mA
Operating Supply Voltage
3.3V
Package Quantity
250
Packaging
Tape and Reel
PLL
Yes
Radiation Hardening
No
RoHS Compliant
Yes
Series
PowerWise®
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LMX2541SQE3030E/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMX2541SQE3030E/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

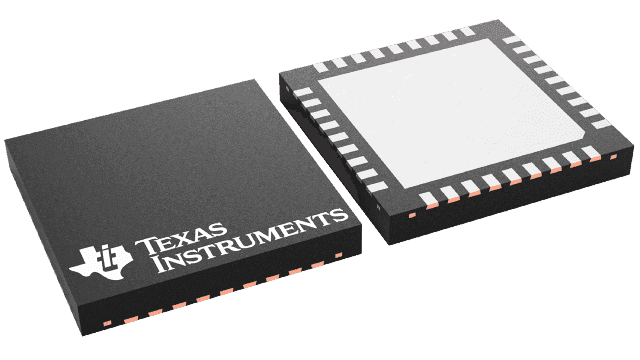

Product Images
