Texas Instruments
RI-ANT-G01E-30
Gate Antenna Series, 134.2kHz Frequency, 60°C Max Operating Temperature
The Gate Antenna Series from Texas Instruments is a bulk-packaged component with a frequency of 134.2kHz. It has a maximum operating temperature of 60°C and a minimum operating temperature of -30°C. The antenna is 715mm in length and 25mm in height, with a width of 270mm. It is not RoHS compliant and contains lead, making it non-compliant with Reach SVHC regulations.
Frequency134.2kHz
Resistance78823300R
Quick Jump:
Technical Specifications
Texas Instruments RI-ANT-G01E-30 technical specifications.
General
| Frequency | 134.2kHz |
| Height | 25mm |
| Lead Free | Contains Lead |
| Length | 715mm |
| Min Frequency | 134.2kHz |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -30°C |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Resistance | 78823300R |
| RoHS Compliant | No |
| Series | Gate Antenna |
| Width | 270mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Texas Instruments RI-ANT-G01E-30 Datasheet
Download the complete datasheet for Texas Instruments RI-ANT-G01E-30 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

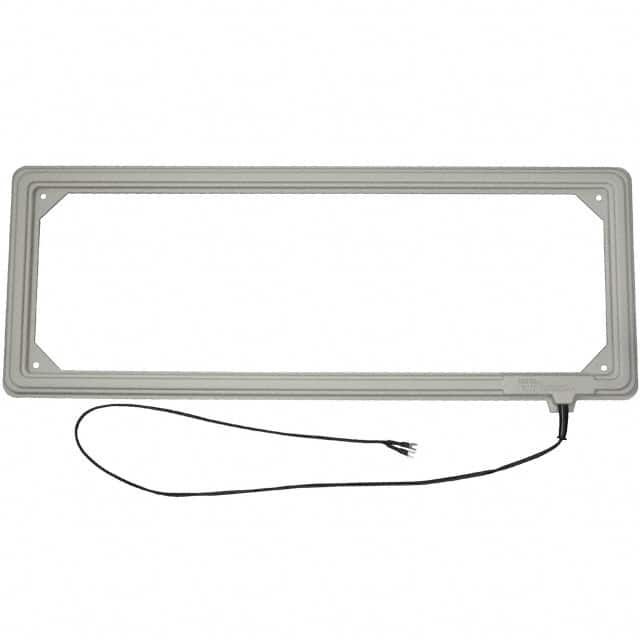

Product Images
