Dual 8-bit to 9-bit parity bus transceiver, featuring 16 channels and 2 circuits. This BICMOS technology device offers bidirectional data flow with 3-STATE outputs and a non-inverting logic function. Operating from a 4.5V to 5.5V supply, it delivers 64mA high and low level output current. Packaged in a 56-SSOP for surface mounting, it functions across a -40°C to 85°C temperature range with a 4.3ns propagation delay.
PackageSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74ABT16833DL technical specifications.
General
Package/Case
SSOP
Direction
Bidirectional
High Level Output Current
64mA
Lead Free
Lead Free
Logic Function
Transceiver, Inverting
Low Level Output Current
64mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Bits
9
Number of Bits per Element
8
Number of Channels
16
Number of Circuits
2
Number of Elements
2
Number of Outputs
16
Operating Supply Voltage
5V
Output Type
3-STATE
Package Quantity
20
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
4.3ns
Quiescent Current
28mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74ABT
Technology
BICMOS
Termination
SMD/SMT
Turn-On Delay Time
6.7ns
Weight
0.024508oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74ABT16833DL Datasheet
Download the complete datasheet for Texas Instruments SN74ABT16833DL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

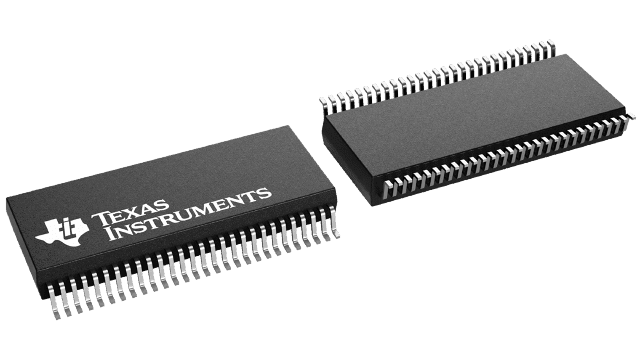

Product Images
