10-bit, 4-channel Analog-to-Digital Converter (ADC) with a 6 MSPS sampling rate. Features a parallel interface, 1 LSB Integral Nonlinearity (INL), and 61dB Signal to Noise Ratio (SNR). Operates from a 3V to 5.25V supply voltage range, consuming 186mW of power. Packaged in a 32-TSSOP, this lead-free component is RoHS compliant.
PackageTSSOP
Current36mA
PolarityUnipolar
Power186mW
Quick Jump:
Technical Specifications
Texas Instruments THS10064CDA technical specifications.
General
Package/Case
TSSOP
Integral Nonlinearity (INL)
1LSB
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
216mW
Max Supply Voltage (DC)
5.25V
Min Supply Voltage (DC)
3V
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Number of A/D Converters
1
Number of Bits
10
Number of Channels
4
Number of Converters
1
Number of Inputs
4
Package Quantity
46
Packaging
Rail/Tube
Polarity
Unipolar
Power Consumption
186mW
Reach SVHC Compliant
No
Resolution
10b
RoHS Compliant
Yes
Sampling Rate
6MS/s
Signal to Noise Ratio (SNR)
61dB
Spurious-free dynamic range (SFDR)
65dB
Supply Current
36mA
Supply Type
Analog, Digital
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS10064CDA Datasheet
Download the complete datasheet for Texas Instruments THS10064CDA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

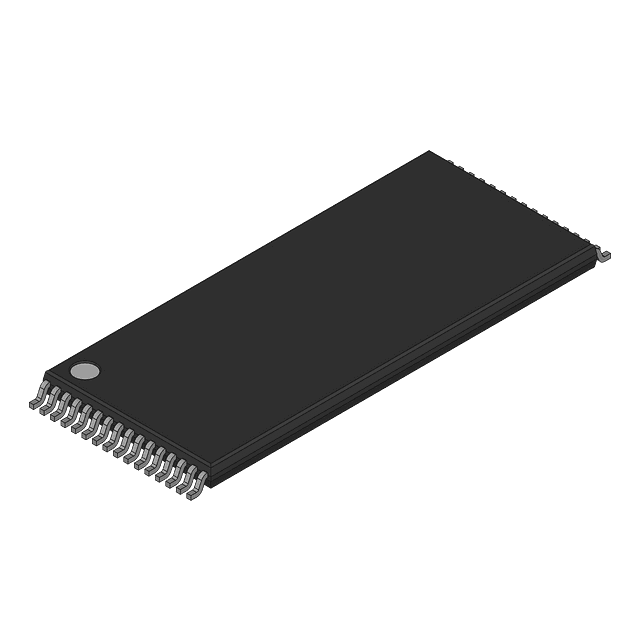

Product Images
