10-bit, 6 MSPS Analog-to-Digital Converter (ADC) with a 4-channel input configuration. Features a parallel DSP/microprocessor interface, integrated 16x FIFO buffer, and channel auto-scan capability. Offers 1 LSB Integral Nonlinearity (INL) and 61dB Signal-to-Noise Ratio (SNR). Operates from a 3V to 5.25V supply range with a maximum power dissipation of 216mW. Packaged in a 32-TSSOP, this RoHS compliant component is suitable for operation between -40°C and 85°C.
PackageTSSOP
PolarityUnipolar
Power186mW
Quick Jump:
Technical Specifications
Texas Instruments THS10064IDAG4 technical specifications.
General
Package/Case
TSSOP
Conversion Rate
6MS/s
Integral Nonlinearity (INL)
1LSB
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
216mW
Max Supply Voltage (DC)
5.25V
Min Supply Voltage (DC)
3V
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Nominal Supply Current
36mA
Number of A/D Converters
1
Number of Bits
10
Number of Converters
1
Number of Elements
1
Number of Inputs
4
Package Quantity
46
Packaging
Rail/Tube
Polarity
Unipolar
Power Consumption
186mW
Power Dissipation
216mW
Resolution
10b
RoHS Compliant
Yes
Sampling Rate
6MS/s
Signal to Noise Ratio (SNR)
61dB
Spurious-free dynamic range (SFDR)
65dB
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS10064IDAG4 Datasheet
Download the complete datasheet for Texas Instruments THS10064IDAG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

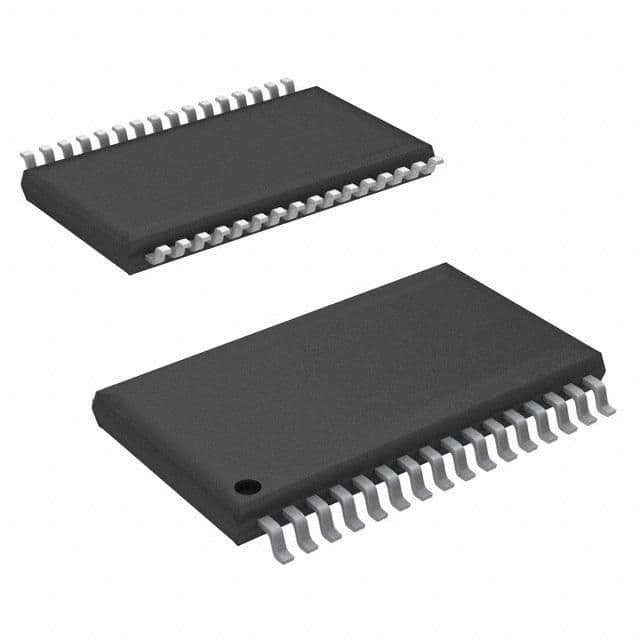

Product Images
