Dual-channel, general-purpose operational amplifier featuring a 6.4MHz bandwidth and Rail-to-Rail Input/Output. This 2-channel op amp offers a 1.6V/µs slew rate and 80mA output current per channel. Operating from a 1.35V to 6V supply range, it boasts a 6.4MHz gain bandwidth product and 109dB voltage gain. Packaged in a 14-PDIP, this lead-free and RoHS compliant component operates from -40°C to 125°C.
PackageN
Current1.3mA
Power1.6W
Quick Jump:
Technical Specifications
Texas Instruments TLV2463IN technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 6.4MHz |
| Package/Case | N |
| Common Mode Rejection Ratio | 66dB |
| Gain Bandwidth Product | 6.4MHz |
| Input Bias Current | 14nA |
| Input Offset Voltage (Vos) | 2mV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 3V |
| Min Dual Supply Voltage | 1.35V |
| Max I/O Voltage | 2mV |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2.7V |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Operating Supply Current | 550uA |
| Operating Supply Voltage | 3V |
| Output Current | 80mA |
| Output Current per Channel | 80mA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Power Dissipation | 1.6W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Slew Rate | 1.6V/µs |
| Supply Current | 1.3mA |
| Unity Gain Bandwidth Product | 6.4MHz |
| Voltage Gain | 109dB |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TLV2463IN Datasheet
Download the complete datasheet for Texas Instruments TLV2463IN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

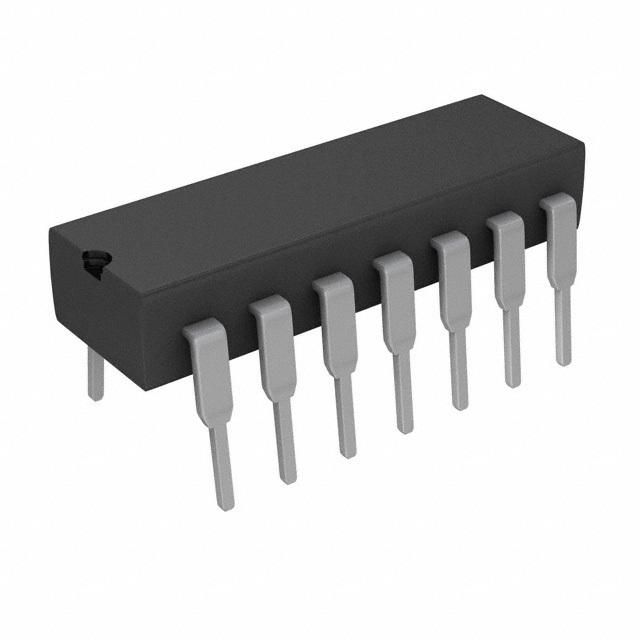

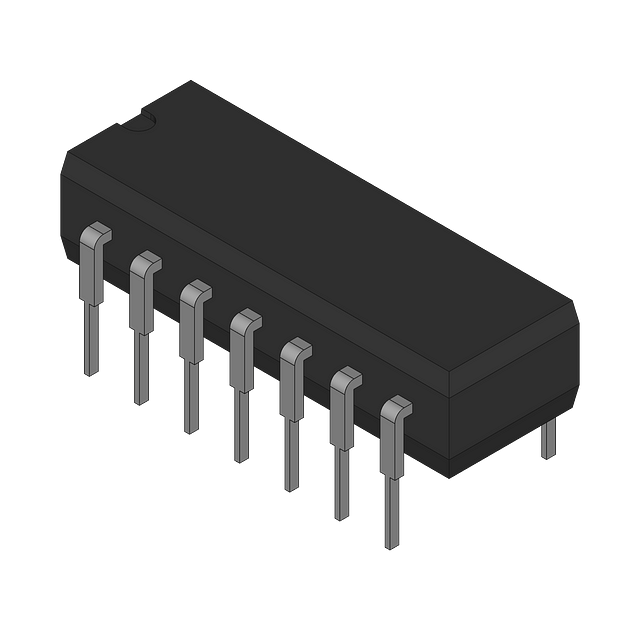

Product Images
