Multi-address remote and local temperature sensor featuring I2C and SMBus interface. This surface mount device offers 12-bit resolution for precise temperature measurement across a -40°C to 125°C operating range. It supports auto beta, N-factor, and series-R correction, with a maximum supply voltage of 5.5V. The component is housed in a compact SOT-23-8 package, measuring 3mm x 1.75mm x 1.3mm.
PackageSOT-23-8
Current700uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMP441AIDCNT technical specifications.
General
Package/Case
SOT-23-8
Height
1.3mm
Interface
I2C, SMBus
Lead Free
Lead Free
Length
3mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
2.7V
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
12
Operating Supply Current
35uA
Output Current
120uA
Output Type
Analog, Digital
Output Voltage
150mV
Package Quantity
250
Packaging
Tape and Reel
Quiescent Current
700uA
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Supply Current
700uA
Width
1.75mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMP441AIDCNT Datasheet
Download the complete datasheet for Texas Instruments TMP441AIDCNT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

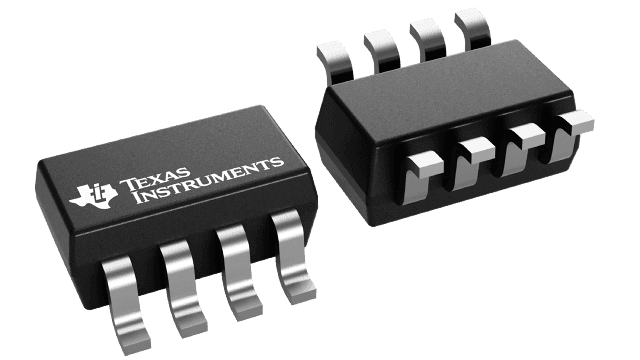

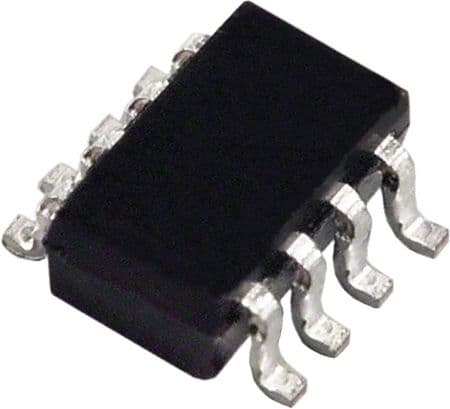

Product Images
