Synchronous step-down DC-DC converter IC with adjustable output voltage from 800mV to 39V and a maximum output current of 1.5A. Features a wide input voltage range of 3.5V to 42V, a low quiescent current of 116uA, and operates across an extended temperature range of -40°C to 150°C. This single-output regulator is housed in a compact 10-pin HTSSOP EP package measuring 3mm x 3mm with a height of 1.02mm. RoHS compliant and designed for efficient power management.
PackageHTSSOP EP
Quick Jump:
Technical Specifications
Texas Instruments TPS54140DGQ technical specifications.
General
Package/Case
HTSSOP EP
Height
1.02mm
Lead Free
Lead Free
Length
3mm
Max Input Voltage
42V
Min Input Voltage
3.5V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Output Voltage
39V
Min Output Voltage
800mV
Number of Channels
1
Number of Outputs
1
Output Current
1.5A
Output Type
Adjustable, Fixed
Output Voltage
39V
Package Quantity
80
Packaging
Rail/Tube
Quiescent Current
116uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SWIFT™
Synchronous Rectifier
No
Thickness
1.02mm
Topology
Buck-Boost
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS54140DGQ Datasheet
Download the complete datasheet for Texas Instruments TPS54140DGQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

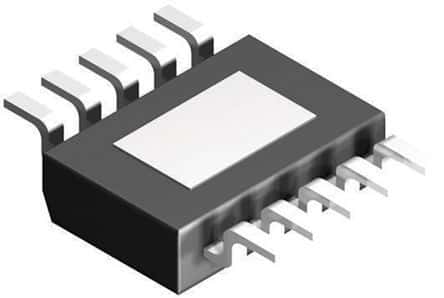

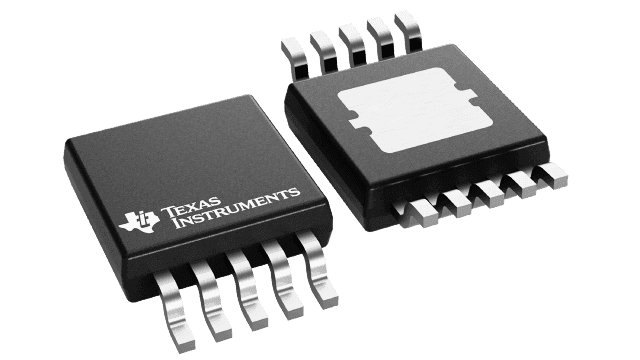

Product Images
