3A synchronous step-down converter with adjustable output voltage from 0.827V to 4.5V. Features a 2.95V to 6V input voltage range and a 2MHz switching frequency. This surface-mount device is housed in a 3mm x 3mm 16-WQFN package and operates from -40°C to 150°C. RoHS compliant and lead-free.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS54319RTET technical specifications.
General
Package/Case
QFN
Lead Free
Lead Free
Max Input Voltage
6V
Min Input Voltage
2.95V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
4.5V
Min Output Voltage
827mV
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
6V
Output Configuration
Positive
Output Current
3A
Output Type
Adjustable
Output Voltage
4.5V
Package Quantity
250
Packaging
Tape and Reel
Quiescent Current
360uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SWIFT™
Synchronous Rectifier
Yes
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS54319RTET Datasheet
Download the complete datasheet for Texas Instruments TPS54319RTET to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

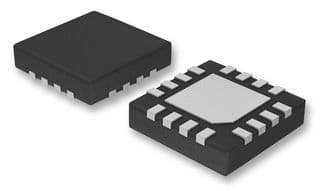

Product Images
