Technical Specifications
Toshiba 1SS402(TE85L,F) technical specifications.
General
Average Rectified Current
50mA
Package/Case
SC
Forward Current
50mA
Max Forward Surge Current (Ifsm)
1A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
100mW
Max Repetitive Reverse Voltage (Vrrm)
25V
Max Reverse Current
500nA
Max Reverse Voltage (DC)
20V
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
1A
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Toshiba 1SS402(TE85L,F) Datasheet
Download the complete datasheet for Toshiba 1SS402(TE85L,F) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

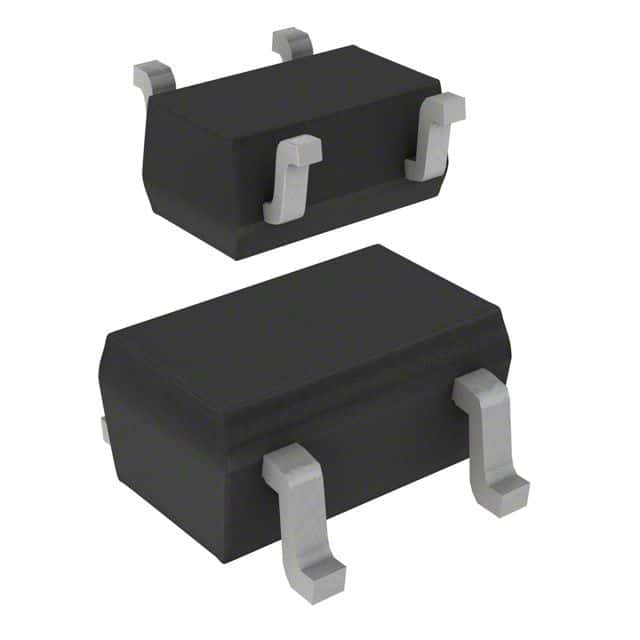

Product Images
