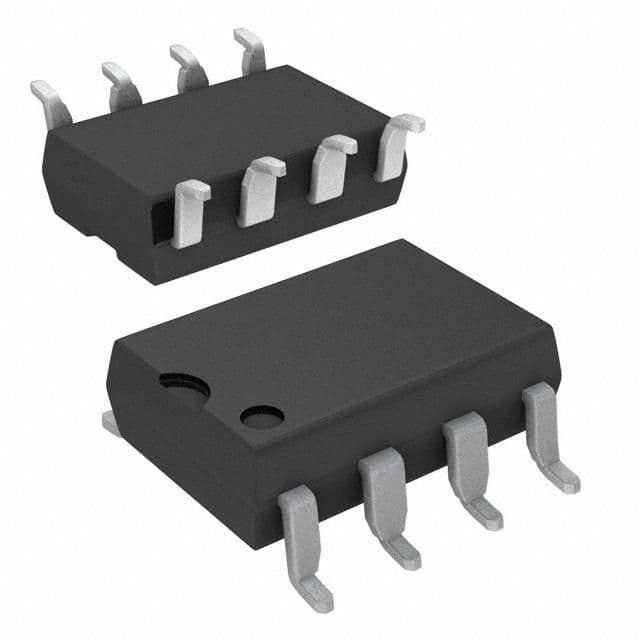

The TLP2662(TP1,F) is a 2-channel unidirectional optocoupler with a maximum operating temperature of 125°C and a minimum operating temperature of -40°C. It features a propagation delay of 75ns and a turn-on delay time of 75ns. The device is designed for surface mount applications and is packaged in a cut tape format. The TLP2662(TP1,F) is RoHS compliant and has a maximum power dissipation of 85mW.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Toshiba TLP2662(TP1,F) datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Toshiba TLP2662(TP1,F) technical specifications.
| Package/Case | SMD/SMT |
| Direction | Unidirectional |
| Fall Time | 0.003us |
| Input Type | DC |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 85mW |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Output Current per Channel | 25mA |
| Packaging | Cut Tape |
| Propagation Delay | 75ns |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 75ns |
| RoHS | Compliant |
Download the complete datasheet for Toshiba TLP2662(TP1,F) to view detailed technical specifications.
