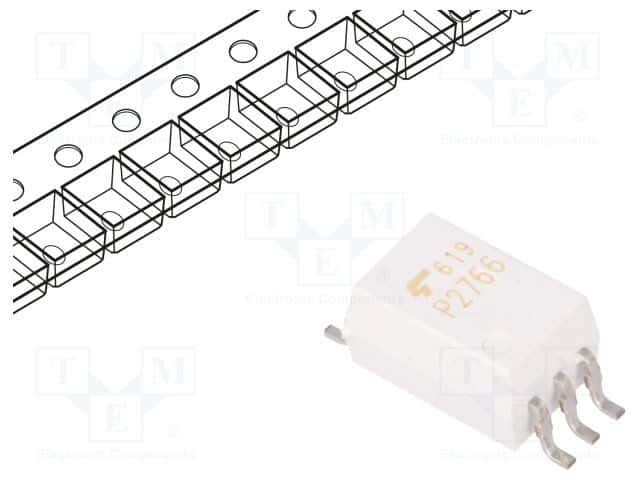

The TLP2766(F) is a unidirectional optocoupler from Toshiba with a reverse breakdown voltage of 5V and a maximum power dissipation of 60mW. It features a propagation delay of 55ns and a turn-on delay time of 55ns. The device is packaged in a surface mount SDIP package and is RoHS compliant. The TLP2766(F) operates over a temperature range of -40°C to 125°C and has an isolation voltage of 5kV.
Sign in to ask questions about the Toshiba TLP2766(F) datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Toshiba TLP2766(F) technical specifications.
| Package/Case | SDIP |
| Direction | Unidirectional |
| Fall Time | 0.015us |
| Forward Current | 25mA |
| Input Type | DC |
| Isolation Voltage | 5kV |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 60mW |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Output Current | 10mA |
| Output Type | TOTEM POLE |
| Packaging | Rail/Tube |
| Power Dissipation | 60mW |
| Propagation Delay | 55ns |
| Radiation Hardening | No |
| Reverse Breakdown Voltage | 5V |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 55ns |
| RoHS | Compliant |
