Toshiba
TLP291-4(GB-TP,E(T
Optocoupler - Transistor Output, 4 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, ROHS COMPLIANT, SURFACE MOUNT, MINIFLAT, 11-11F1, SOP-16
PackageSO
MountingSurface Mount
Power170mW
Quick Jump:
Technical Specifications
Toshiba TLP291-4(GB-TP,E(T technical specifications.
General
Package/Case
SO
Collector Emitter Saturation Voltage
400mV
Collector Emitter Voltage (VCEO)
80V
Collector-emitter Voltage-Max
400mV
Current Transfer Ratio
400%
Forward Current
50mA
Input Type
DC
Isolation Voltage
2.5kV
Max Operating Temperature
110°C
Min Operating Temperature
-55°C
Max Output Voltage
80V
Mount
Surface Mount
Number of Channels
4
Number of Elements
4
Output Current per Channel
50mA
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
170mW
Radiation Hardening
No
Reverse Breakdown Voltage
5V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Toshiba TLP291-4(GB-TP,E(T Datasheet
Download the complete datasheet for Toshiba TLP291-4(GB-TP,E(T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

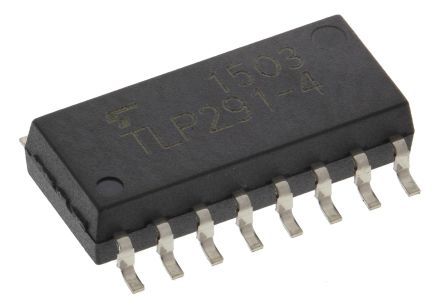

Product Images
