Technical Specifications
Toshiba TLP291(BL-TP,SE technical specifications.
General
| Package/Case | SO |
| Collector Emitter Saturation Voltage | 300mV |
| Collector-emitter Voltage-Max | 300mV |
| Input Type | DC |
| Max Collector Current | 50mA |
| Max Input Current | 50mA |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 80V |
| Max Power Dissipation | 200mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Output Current per Channel | 50mA |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
Compliance
| RoHS | Compliant |
Datasheet
Toshiba TLP291(BL-TP,SE Datasheet
Download the complete datasheet for Toshiba TLP291(BL-TP,SE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

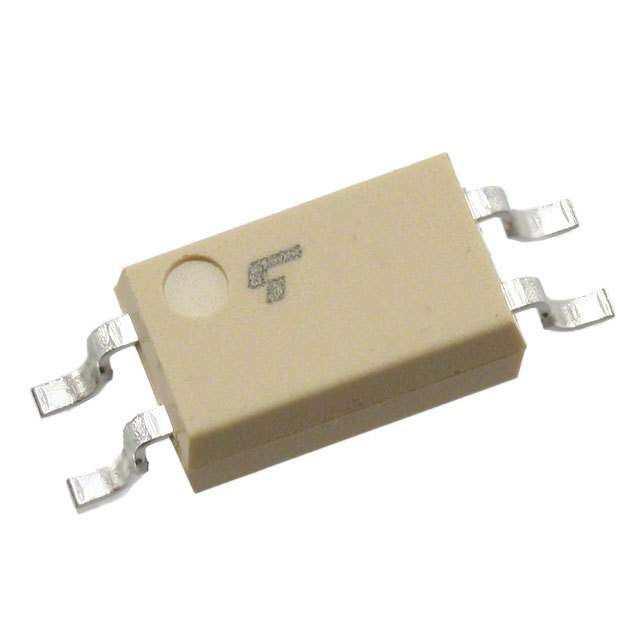

Product Images
