General purpose optocoupler featuring a single channel with a DC input. Surface mountable in a SO package, it offers a maximum collector current of 50mA and a maximum output voltage of 80V. This component boasts a high isolation voltage of 3.75KV, a collector-emitter saturation voltage of 300mV, and operates across a wide temperature range from -55°C to 125°C. Maximum power dissipation is 200mW, and it is supplied on tape and reel, adhering to RoHS compliance.
PackageSO
MountingSurface Mount
Quick Jump:
Technical Specifications
Toshiba TLP293(GB-TPL,E technical specifications.
General
| Package/Case | SO |
| Collector Emitter Saturation Voltage | 300mV |
| Collector-emitter Voltage-Max | 300mV |
| Input Type | DC |
| Max Collector Current | 50mA |
| Max Input Current | 50mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 80V |
| Max Power Dissipation | 200mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Output Current per Channel | 50mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Toshiba TLP293(GB-TPL,E Datasheet
Download the complete datasheet for Toshiba TLP293(GB-TPL,E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

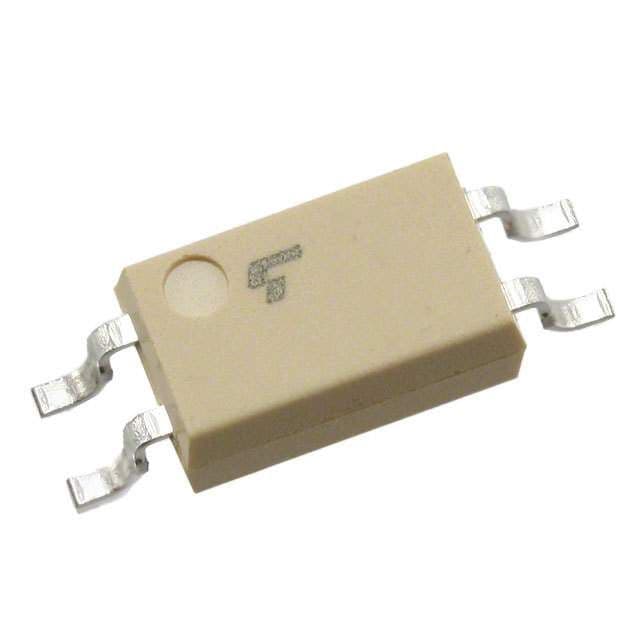

Product Images
