General optocoupler featuring a TRIAC driver output, designed for through-hole mounting in a PDIP package. Offers 5kV isolation voltage with a 600V output voltage and 100mA RMS output current. Operates with a 20mA input current at a nominal 1.15V, up to a maximum of 50mA and 1.3V. Suitable for a wide temperature range of -25°C to 85°C, this RoHS compliant component is lead-free and holds UR, BSI, and SEMKO approvals.
PackagePDIP
MountingThrough Hole
Power300mW
Quick Jump:
Technical Specifications
Toshiba TLP3063(S,C,F) technical specifications.
General
| Approvals | UR, BSI, SEMKO |
| Package/Case | PDIP |
| Forward Current | 50mA |
| Hold Current | 600uA |
| Input Current | 20mA |
| Isolation Voltage | 5kV |
| Lead Free | Lead Free |
| Max Input Current | 50mA |
| Max Input Voltage | 1.3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Output Current | 100mA |
| Mount | Through Hole |
| Nominal Input Voltage | 1.15V |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Output Current | 100mA |
| Output Current per Channel | 100mA |
| Output Voltage | 600V |
| Package Quantity | 2000 |
| Packaging | Rail/Tube |
| Power Dissipation | 300mW |
| Radiation Hardening | No |
| Reverse Breakdown Voltage | 5V |
| RMS Current (Irms) | 100mA |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Toshiba TLP3063(S,C,F) Datasheet
Download the complete datasheet for Toshiba TLP3063(S,C,F) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

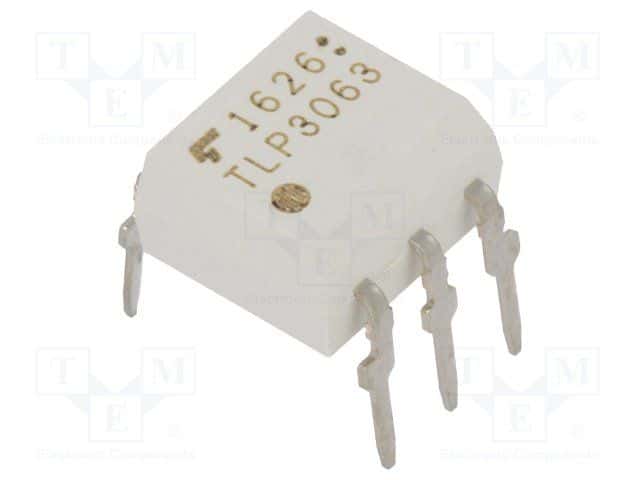

Product Images
