General purpose optocoupler featuring a single channel Darlington transistor output. Offers 5kV isolation voltage and a 300V collector-emitter voltage. Maximum collector current is 150mA with a typical current transfer ratio of 4000%. Packaged in a through-hole PDIP with a maximum power dissipation of 350mW and operating temperature range of -55°C to 100°C.
PackagePDIP
MountingThrough Hole
Power350mW
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Toshiba TLP371 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Toshiba TLP371 technical specifications.
General
| Package/Case | PDIP |
| Collector Emitter Saturation Voltage | 1.2V |
| Collector Emitter Voltage (VCEO) | 300V |
| Collector-emitter Voltage-Max | 1.2V |
| Current Transfer Ratio | 4000% |
| Fall Time | 15us |
| Forward Current | 60mA |
| Input Type | DC |
| Isolation Voltage | 5kV |
| Lead Free | Contains Lead |
| Max Collector Current | 150mA |
| Max Input Current | 100mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 350mW |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 150mA |
| Output Voltage | 300V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 350mW |
| Reverse Breakdown Voltage | 5V |
| RoHS Compliant | No |
Compliance
| RoHS | Not Compliant |
Datasheet
Toshiba TLP371 Datasheet
Download the complete datasheet for Toshiba TLP371 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

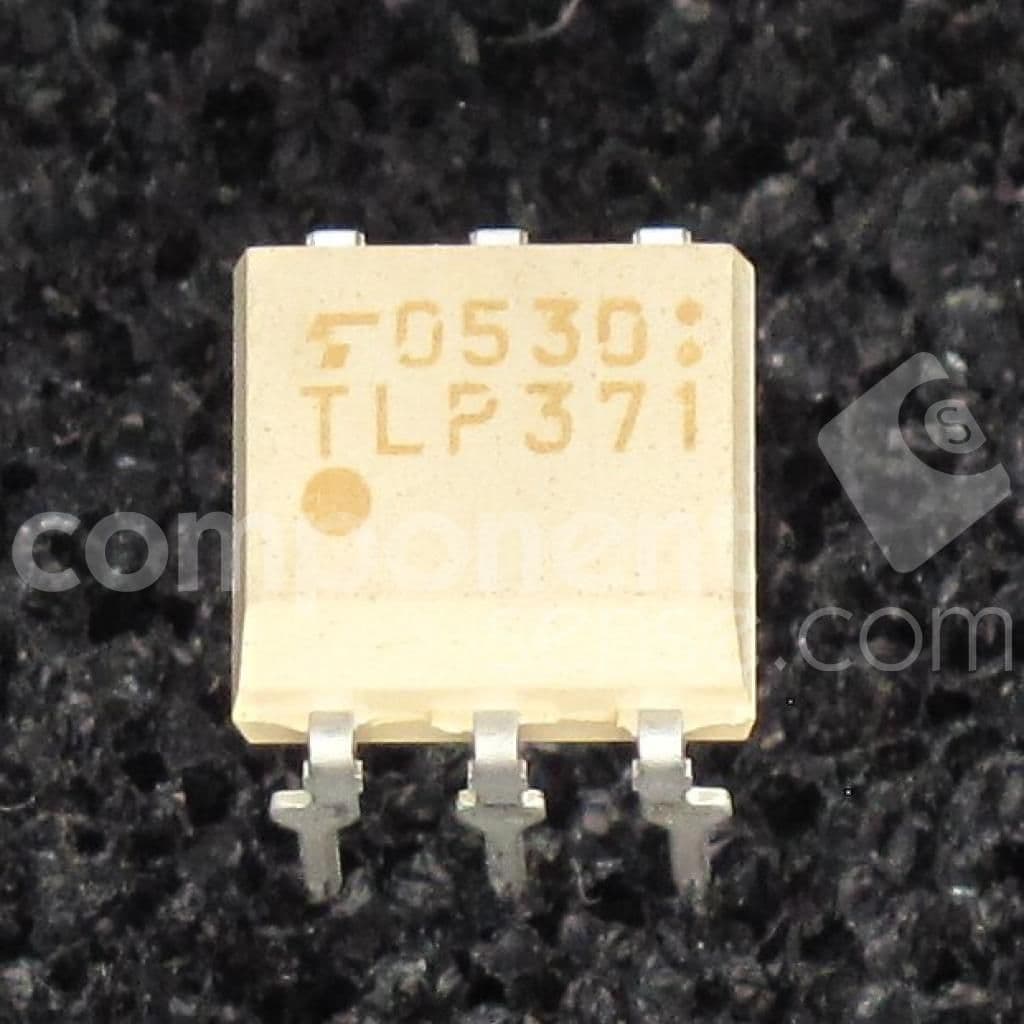

Product Images
