TLP785(GB-TP6,F(C

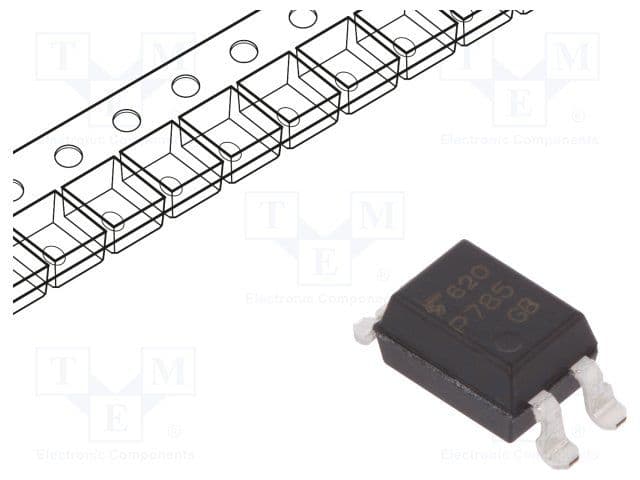

Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin DIP T/R

PackageDIP

Quick Jump:

Toshiba TLP785(GB-TP6,F(C technical specifications.

Package/Case

DIP

Collector Emitter Saturation Voltage

400mV

Max Collector Current

50mA

Max Input Current

60mA

Max Operating Temperature

85°C

Min Operating Temperature

-25°C

Max Power Dissipation

240mW

RoHS

Compliant
