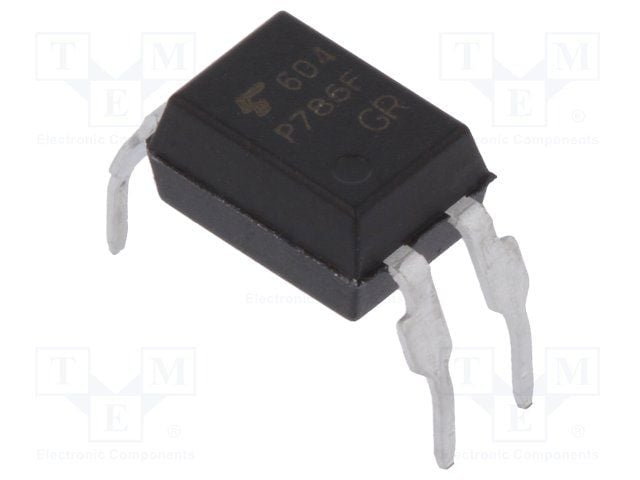

TLP785F(GR-TP7F(C

Name: TLP785F(GR-TP7F(C Toshiba
Brand: Toshiba
SKU: TLP785F(GR-TP7F(C

Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP T/R

PackagePDIP

MountingThrough Hole

Power240mW

Quick Jump:

Toshiba TLP785F(GR-TP7F(C technical specifications.

Package/Case	PDIP
Collector Emitter Saturation Voltage	400mV
Collector Emitter Voltage (VCEO)	80V
Current Transfer Ratio	600%
Forward Current	60mA
Max Operating Temperature	85°C
Min Operating Temperature	-25°C
Mount	Through Hole
Number of Elements	1
Packaging	Tape and Reel
Power Dissipation	240mW
Reverse Breakdown Voltage	5V

RoHS

Compliant
