Technical Specifications
Toshiba TLP785GB-TP6FC technical specifications.
General
| Package/Case | DIP |
| Collector Emitter Saturation Voltage | 400mV |
| Input Type | DC |
| Max Collector Current | 50mA |
| Max Input Current | 60mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Power Dissipation | 240mW |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
Compliance
| RoHS | Compliant |
Datasheet
Toshiba TLP785GB-TP6FC Datasheet
Download the complete datasheet for Toshiba TLP785GB-TP6FC to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

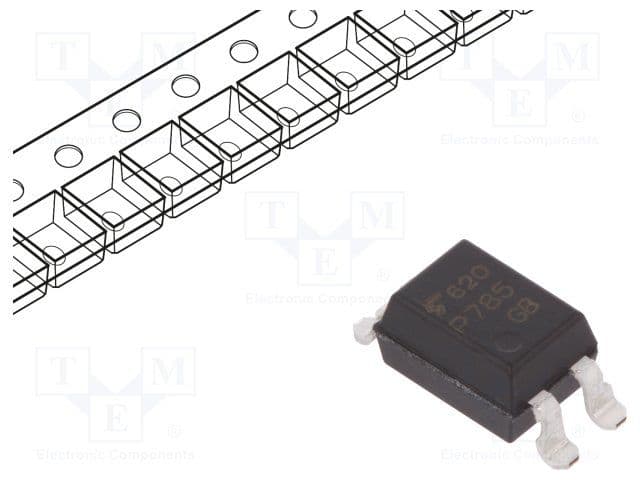

Product Images
