PackageDIP
MountingThrough Hole
Power2W
Quick Jump:
Technical Specifications

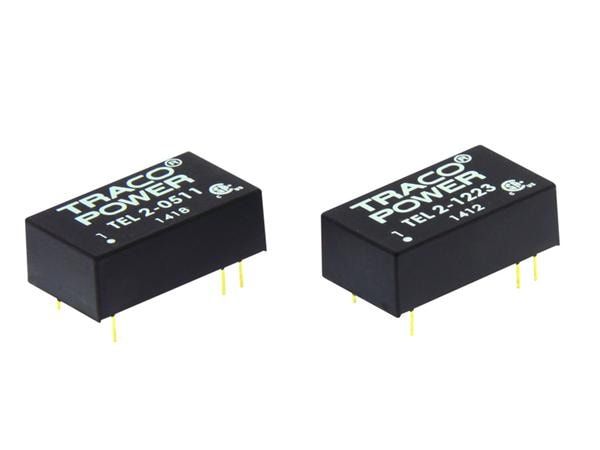

Traco Power TEL2-4822 technical specifications.
General
Package/Case
DIP
Current - Output 1
83mA
Current - Output 2
85mA
Depth
13.7mm
Efficiency
77%
Height
7.2mm
Isolation
Isolated
Isolation Voltage
1.5kV
Lead Free
Contains Lead
Length
23.8mm
Max Input Voltage (DC)
75V
Min Input Voltage (DC)
36V
Max Input Voltage
75V
Min Input Voltage
36V
Max Operating Temperature
75°C
Min Operating Temperature
-40°C
Max Output Power
2W
Mount
Through Hole
Nominal Input Voltage
48V
Number of Outputs
2
Output Current
85mA
Output Power
2W
Output Voltage
12V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TEL 2
Voltage - Output 1
12V
Voltage - Output 2
-12V
Weight
5.1g
Width
13.7mm
Compliance
RoHS
Compliant
