PackageMetal
MountingThrough Hole
Quick Jump:
Technical Specifications
Traco Power TEN25-4812 technical specifications.
General
| Package/Case | Metal |
| Current - Output 1 | 2.5A |
| Depth | 50.8mm |
| Efficiency | 89% |
| Features | OVP, OCP, SCP |
| Height | 9.5mm |
| Isolation Voltage | 1.5kV |
| Length | 50.8mm |
| Max Input Voltage (DC) | 75V |
| Min Input Voltage (DC) | 36V |
| Max Input Voltage | 75V |
| Min Input Voltage | 48V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2.5A |
| Max Output Power | 25W |
| Max Power Dissipation | 30W |
| Mount | Through Hole |
| Nominal Output Voltage | 12V |
| Number of Outputs | 1 |
| Output Current | 2.5A |
| Output Voltage | 12V |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TEN 25 (30W) |
| Voltage - Output 1 | 12V |
| Weight | 48g |
| Width | 40.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Traco Power TEN25-4812 Datasheet
Download the complete datasheet for Traco Power TEN25-4812 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

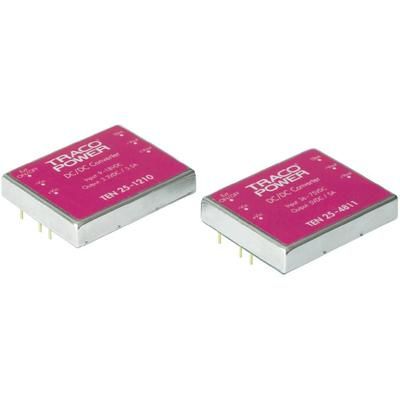

Product Images
