Traco Power
TEN8-2421WI

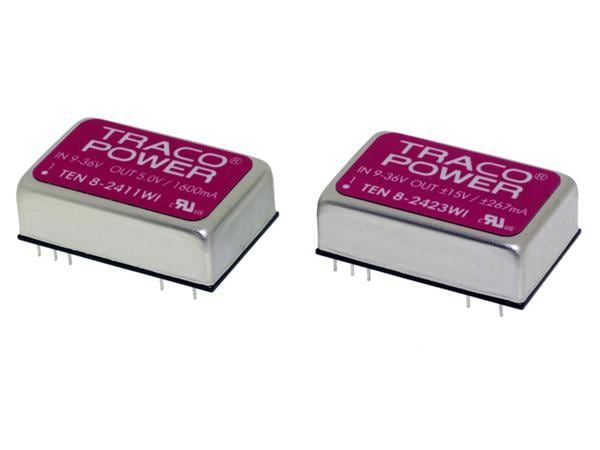

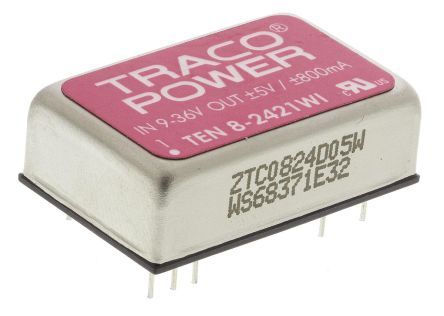

TRACOPOWER TEN 8-2421WI Isolated Board Mount DC/DC Converter, Fixed, 2 Output, 9 V, 36 V, 8 W, 5 V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Traco Power TEN8-2421WI technical specifications.
General
| Current - Output 1 | 800mA |
| Current - Output 2 | 800mA |
| Depth | 10.2mm |
| Efficiency | 84% |
| Features | UVLO, OVP, OCP, SCP |
| Height | 10.2mm |
| Isolation Voltage | 1.5kV |
| Lead Free | Contains Lead |
| Length | 32mm |
| Max Input Voltage (DC) | 36V |
| Min Input Voltage (DC) | 9V |
| Max Input Voltage | 36V |
| Min Input Voltage | 9V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 800mA |
| Max Output Power | 8W |
| Max Power Dissipation | 8W |
| Mount | Through Hole, PCB |
| Nominal Input Voltage | 24V |
| Number of Outputs | 2 |
| Output Current | 800mA |
| Output Voltage | 5V |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TEN 8WI (8W) |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Weight | 18g |
| Width | 20.3mm |
Compliance
| RoHS | Compliant |
