Traco Power
TEP100-1218
TRACOPOWER TEP 100-1218 DC/DC Converter, Metal Case, Fixed, 1 Output, 9 V, 18 V, 100 W, 48 V
PackageMetal
Quick Jump:
Technical Specifications
Traco Power TEP100-1218 technical specifications.
General
| Package/Case | Metal |
| Current - Output 1 | 2.1A |
| Height | 12.7mm |
| Isolation Voltage | 1.5kV |
| Length | 57.9mm |
| Max Input Voltage (DC) | 18V |
| Min Input Voltage (DC) | 9V |
| Max Input Voltage | 18V |
| Min Input Voltage | 9V |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2.1A |
| Max Output Power | 100W |
| Nominal Output Voltage | 48V |
| Number of Outputs | 1 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Voltage - Output 1 | 48V |
| Weight | 97g |
| Width | 61mm |
Compliance
| RoHS | Compliant |
Datasheet
Traco Power TEP100-1218 Datasheet
Download the complete datasheet for Traco Power TEP100-1218 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

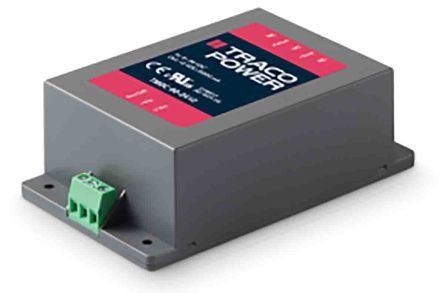

Product Images
